Home >> Chevrolet >> 1989 >> Cavalier/Z24 L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> W/Digital & Gauge Cluster >> Part 1 of 2

Part 1 of 2

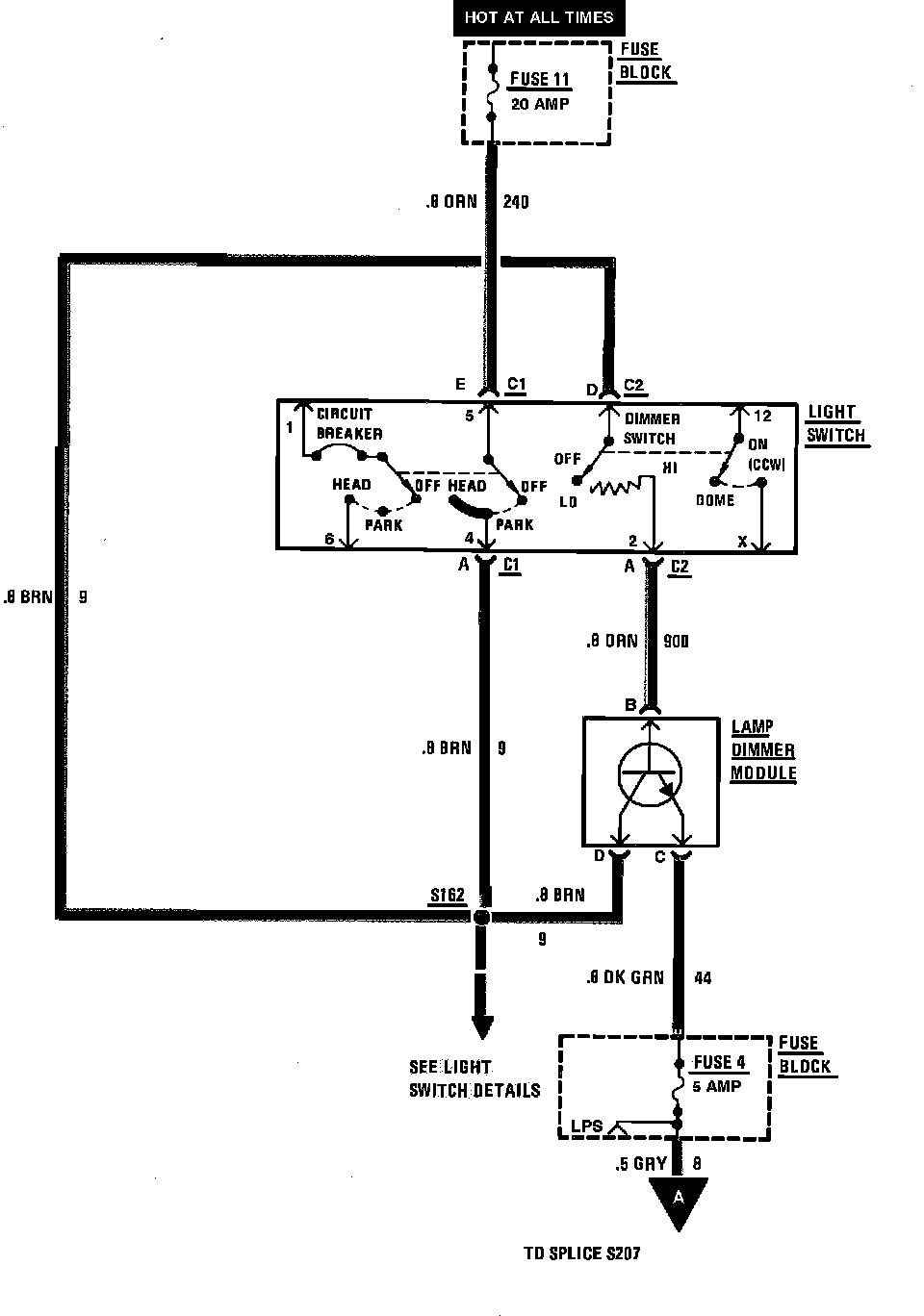

Dimming - RS & Z24:
