Circuit Breaker 15
Circuit Breaker 15

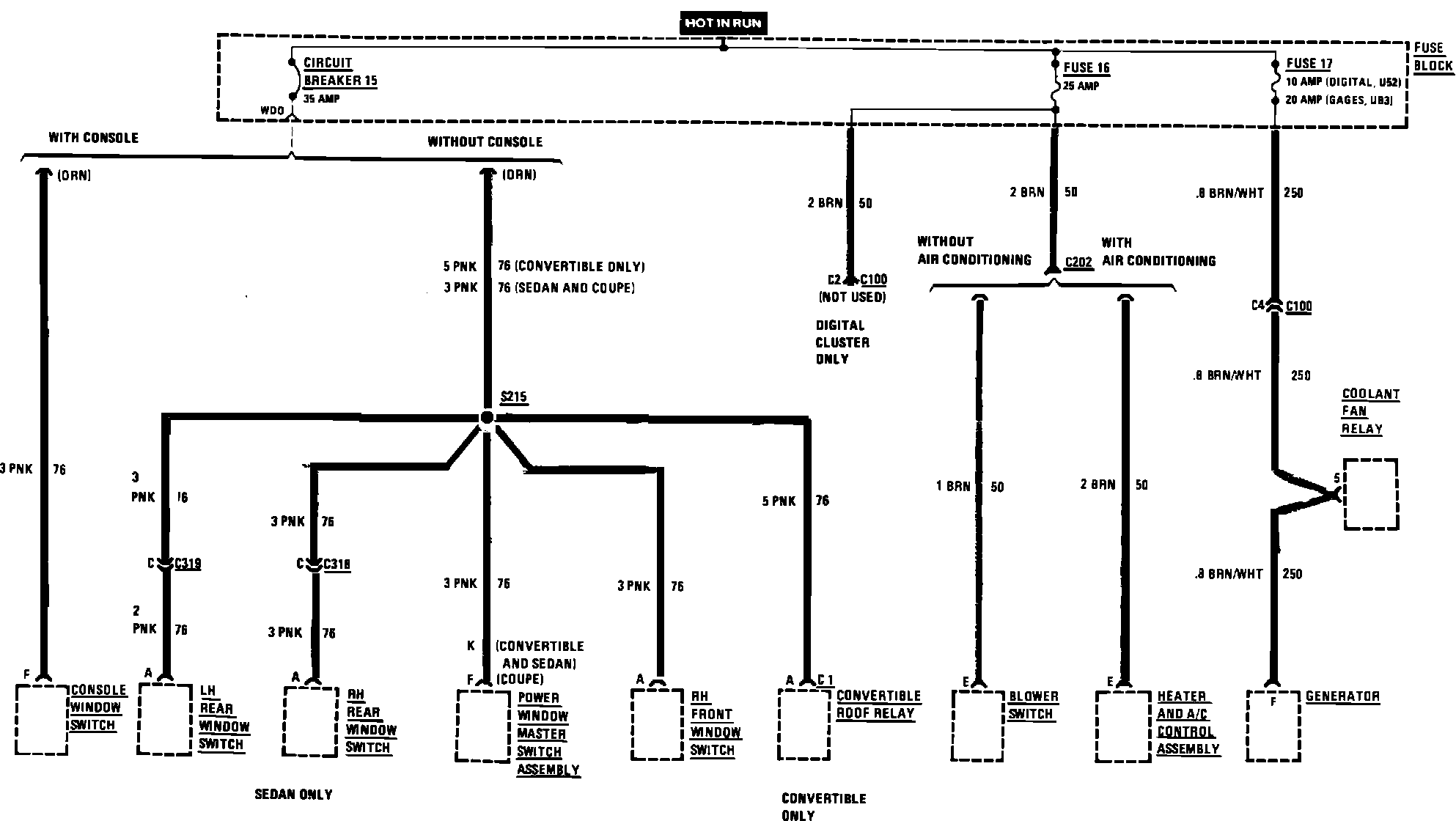

Fuse Block Details (Fuse 16, Fuse 17 & Circuit Breaker 15) W/Digital & Gauge Cluster:
