Headlamp
>>
Headlamp Switch
>>
W/Standard Cluster
>>
Part 2 of 4
Part 2 of 4

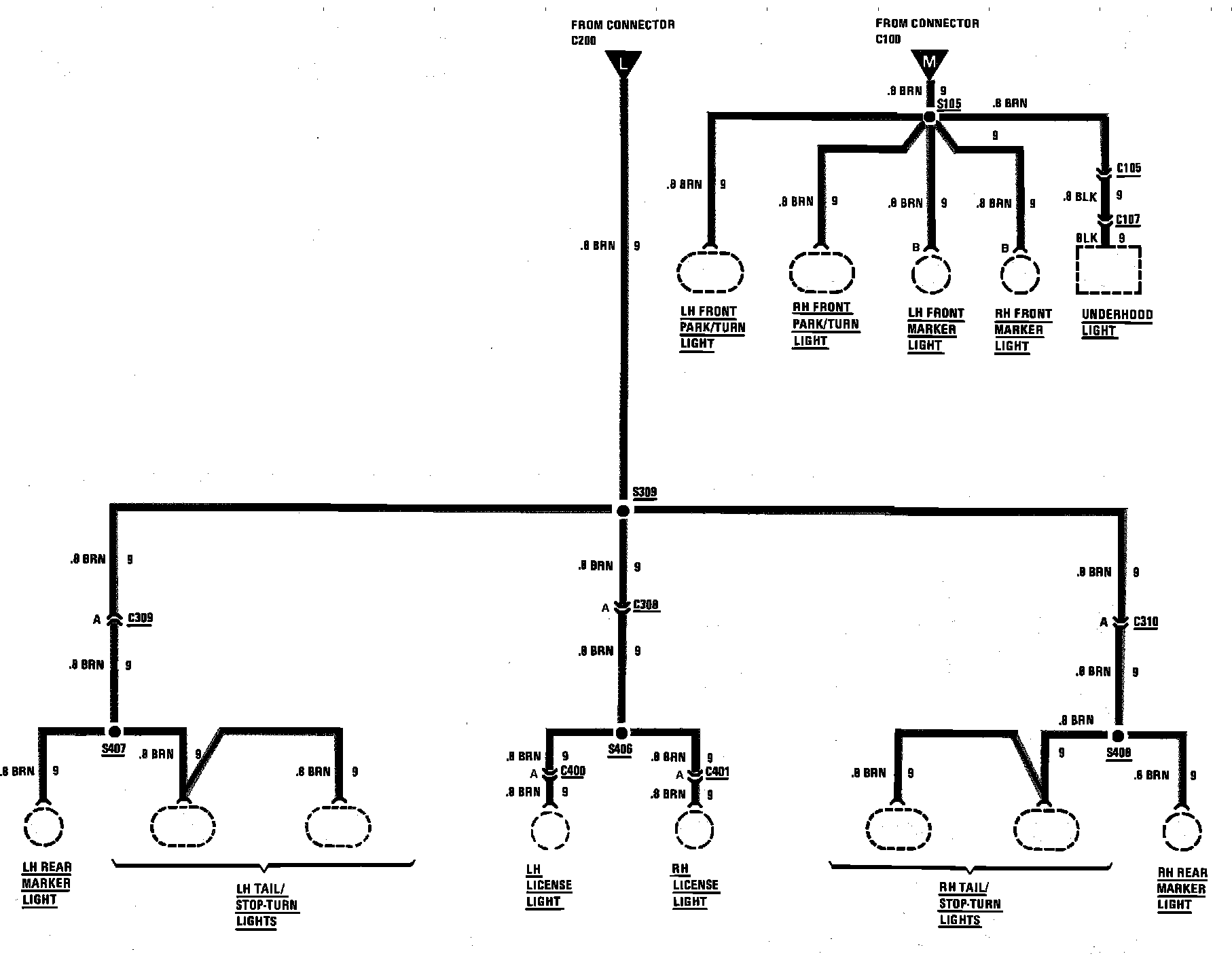

Light Switch Details Wiring Circuit (Part 3 Of 4):
