Headlamp
>>
Headlamp Switch
>>
W/Standard Cluster
>>
Part 1 of 4
Part 1 of 4

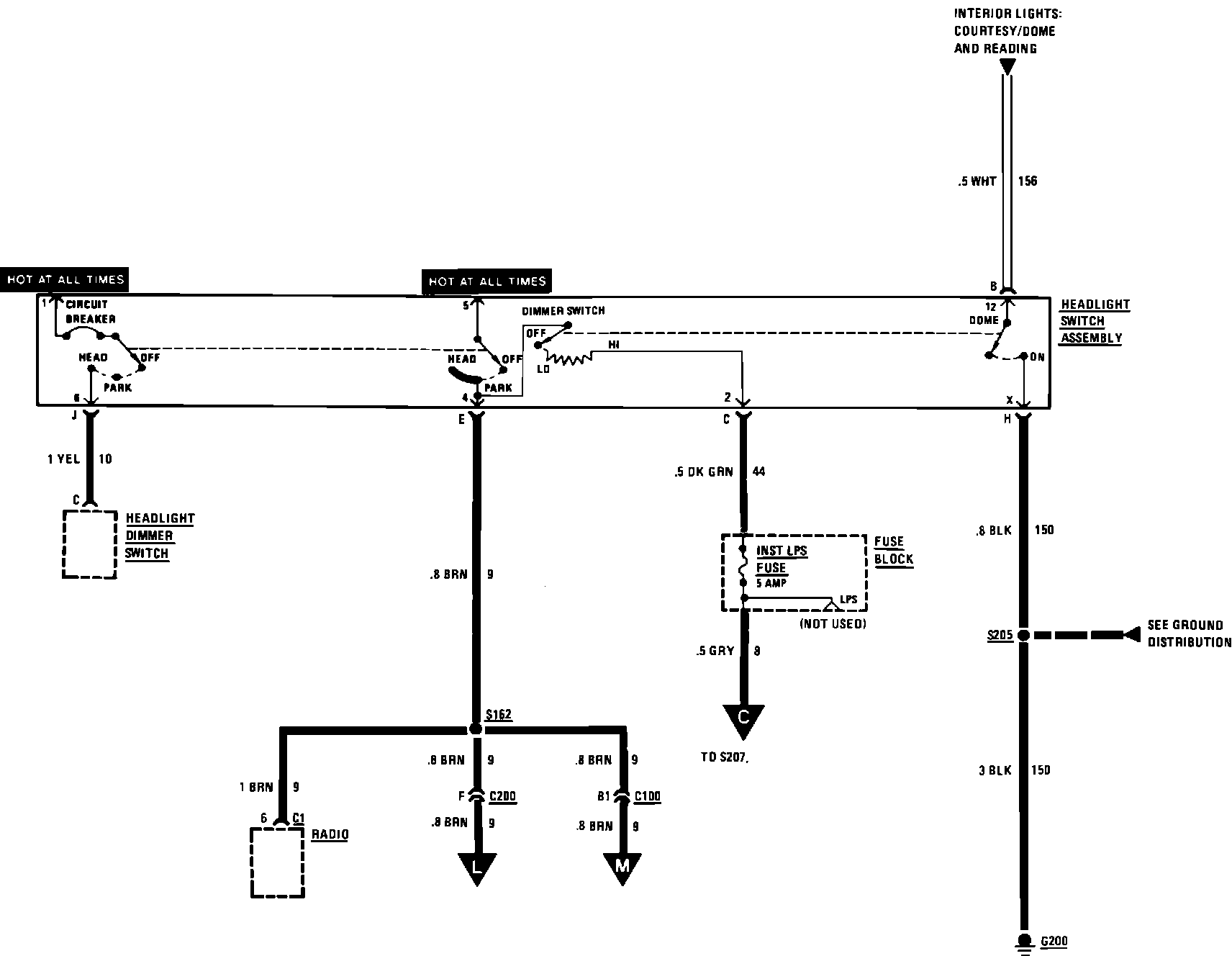

Lamp Switch Details (W/Standard Cluster):
