Cavalier/Z24 L4-121 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Dimmer Switch
>>
W/Standard Cluster
W/Standard Cluster

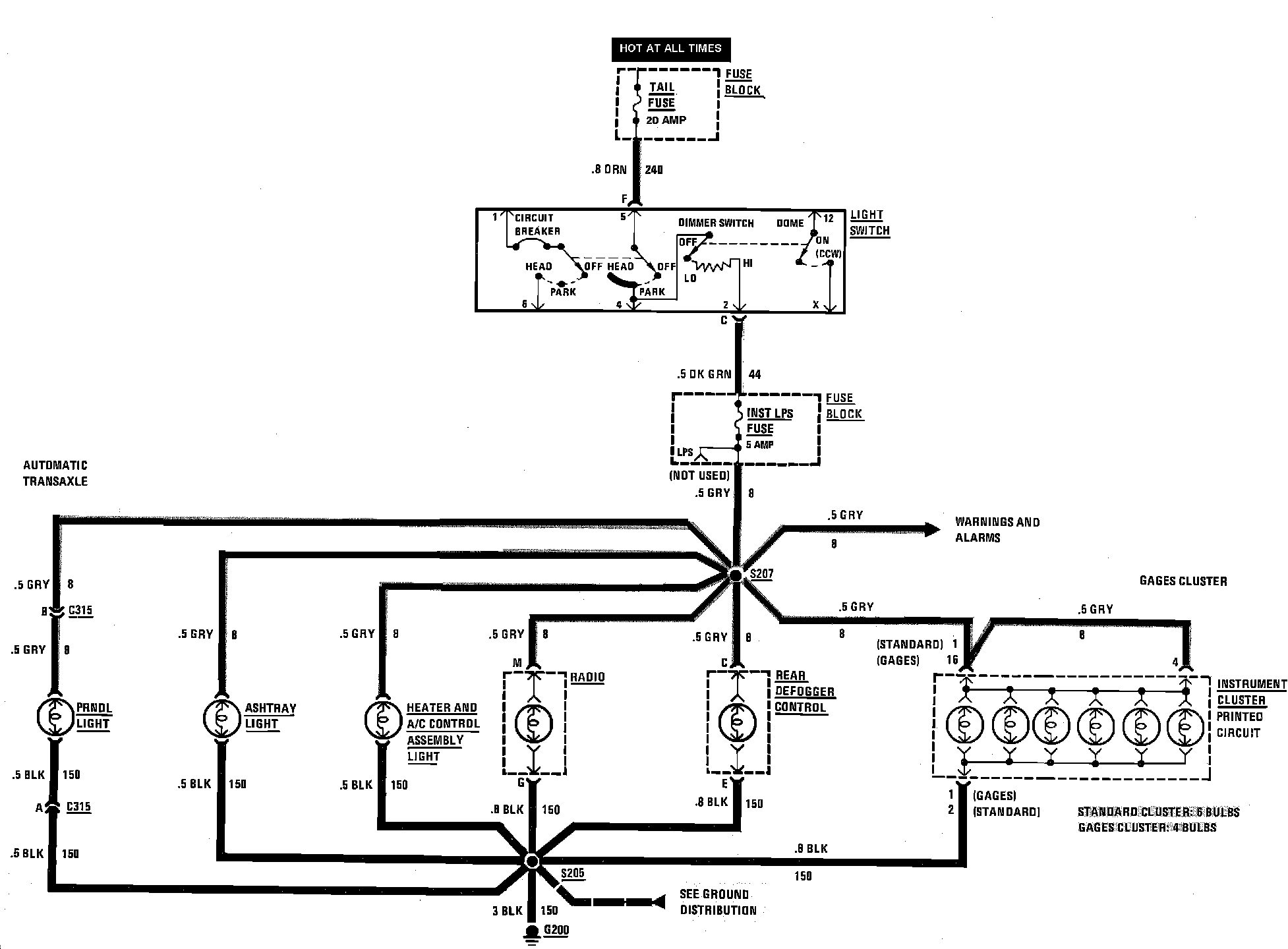

Dimming - Exc. RS & Z24:
