Manifold Pressure/Vacuum Sensor
>>
Locations
>>

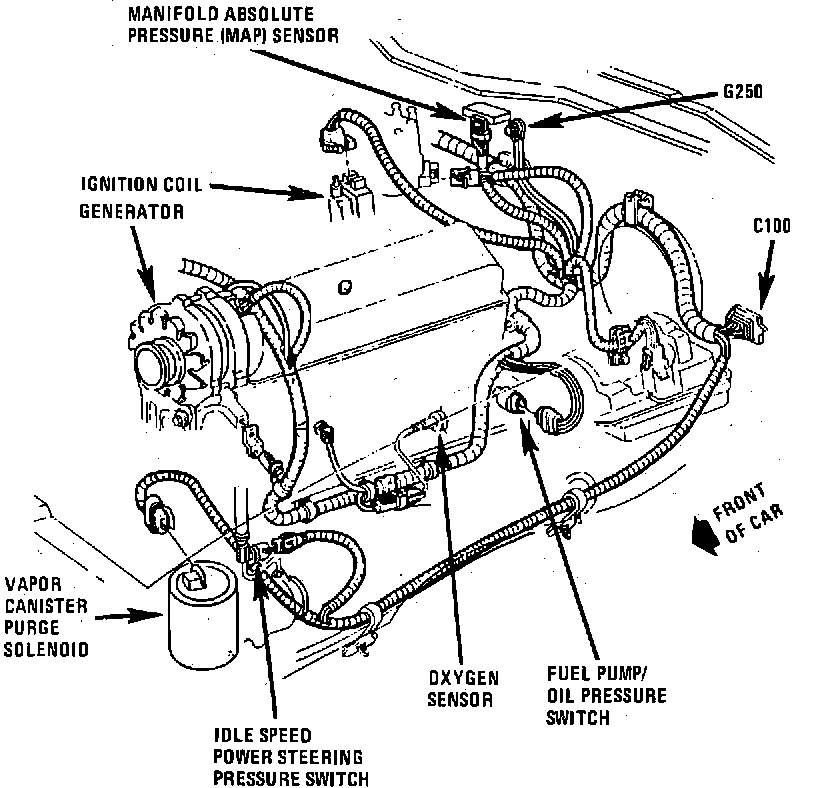

Manifold Absolute Pressure (MAP) Sensor
Manifold Absolute Pressure (MAP) Sensor
RH Rear Of Engine.:
Center Of Firewall
Applicable to: Caprice & Safari w/V8-305/5.0L TBI
