Home
>>
Chevrolet
>>
1989
>>
Caprice V6-262 4.3L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Circuit Breaker
>>
Diagrams
>>
Electrical Diagrams
>>
Power Accessories
Power Accessories

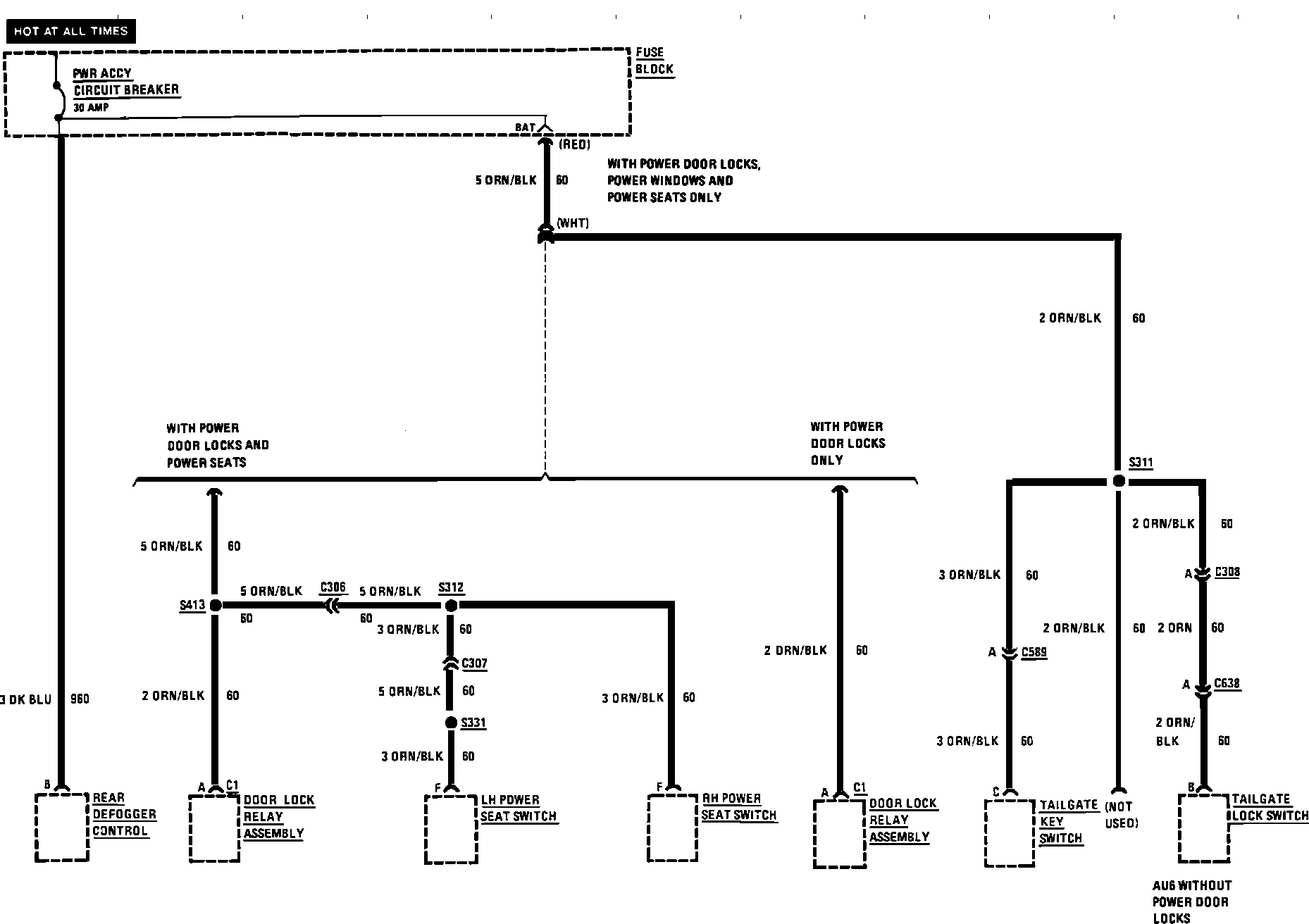

Fuse Block Details (Power Accessory Circuit Breaker):
