A/C, Radio, Stop/Hazard & Wiper
A/C, Radio, Stop/Hazard & Wiper

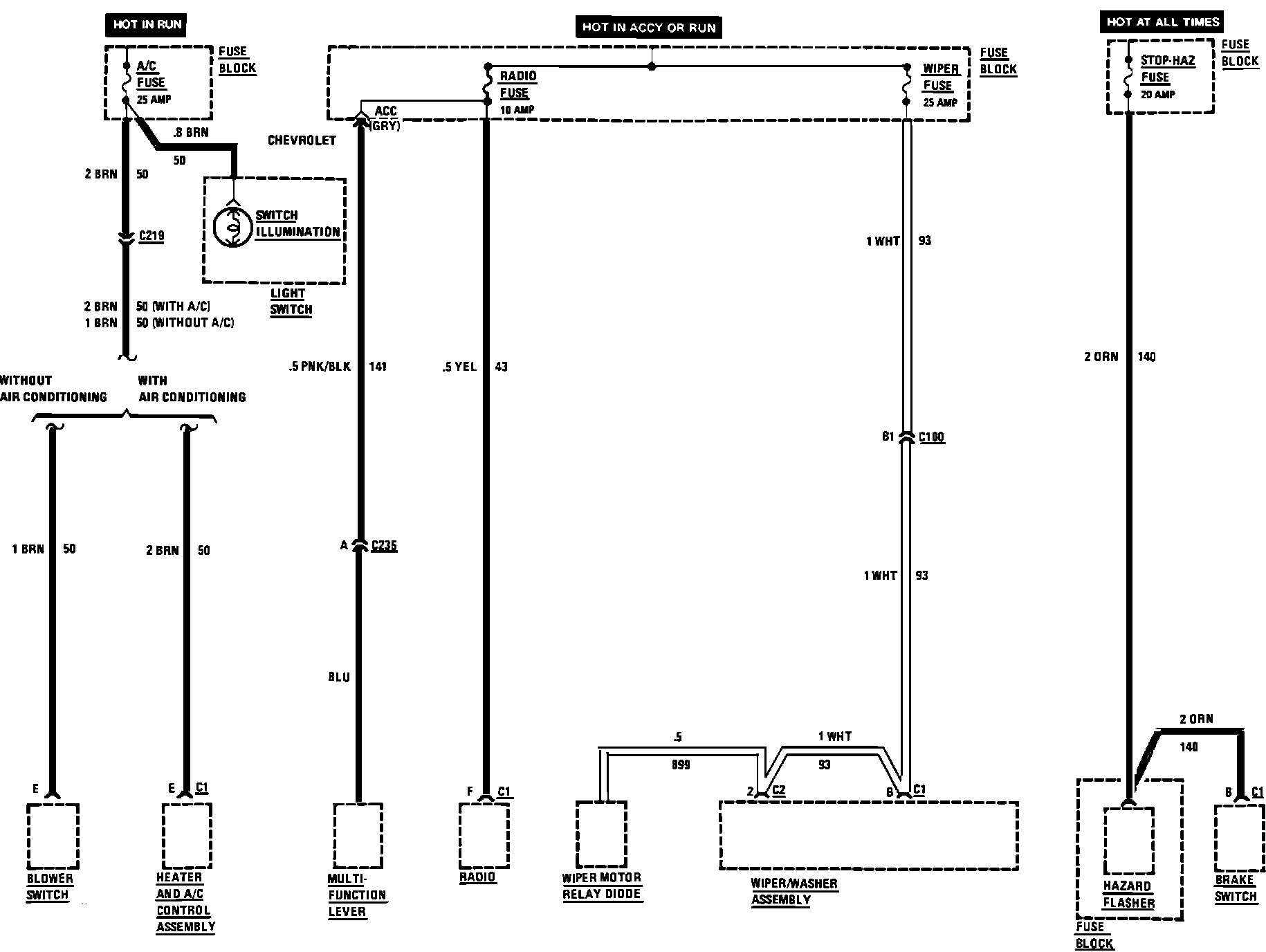

Fuse Block Details (A/C, Radio, Stop/Hazard & Wiper):
