Home >> Chevrolet >> 1989 >> Caprice V6-262 4.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Wiring Circuit >> Carbureted Engines >> Part 1 of 2

Part 1 of 2

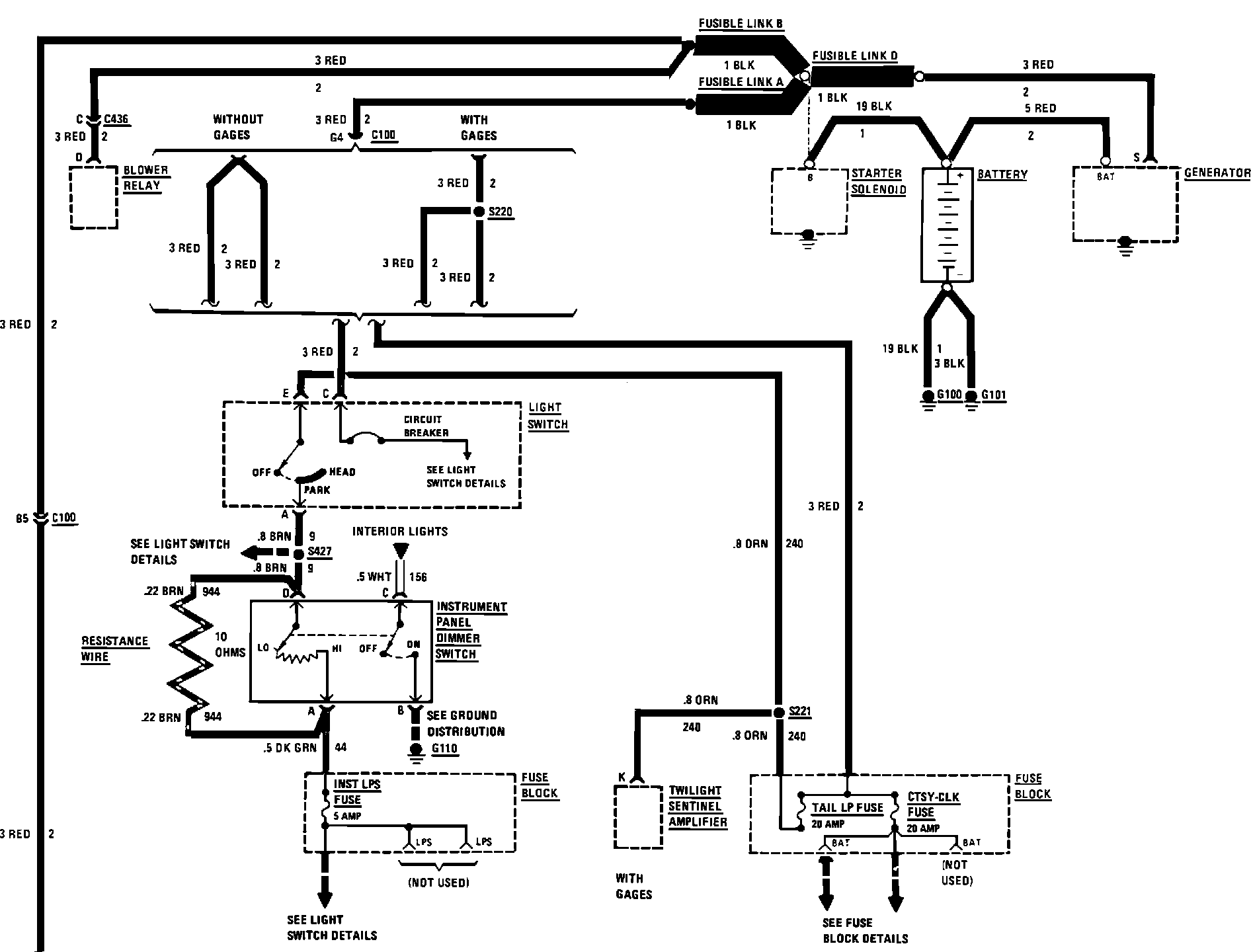

Power Distribution (W/Carbureted Engines):
