Starting and Charging
>>
System Diagram
>>
W/Carbureted Engines
W/Carbureted Engines

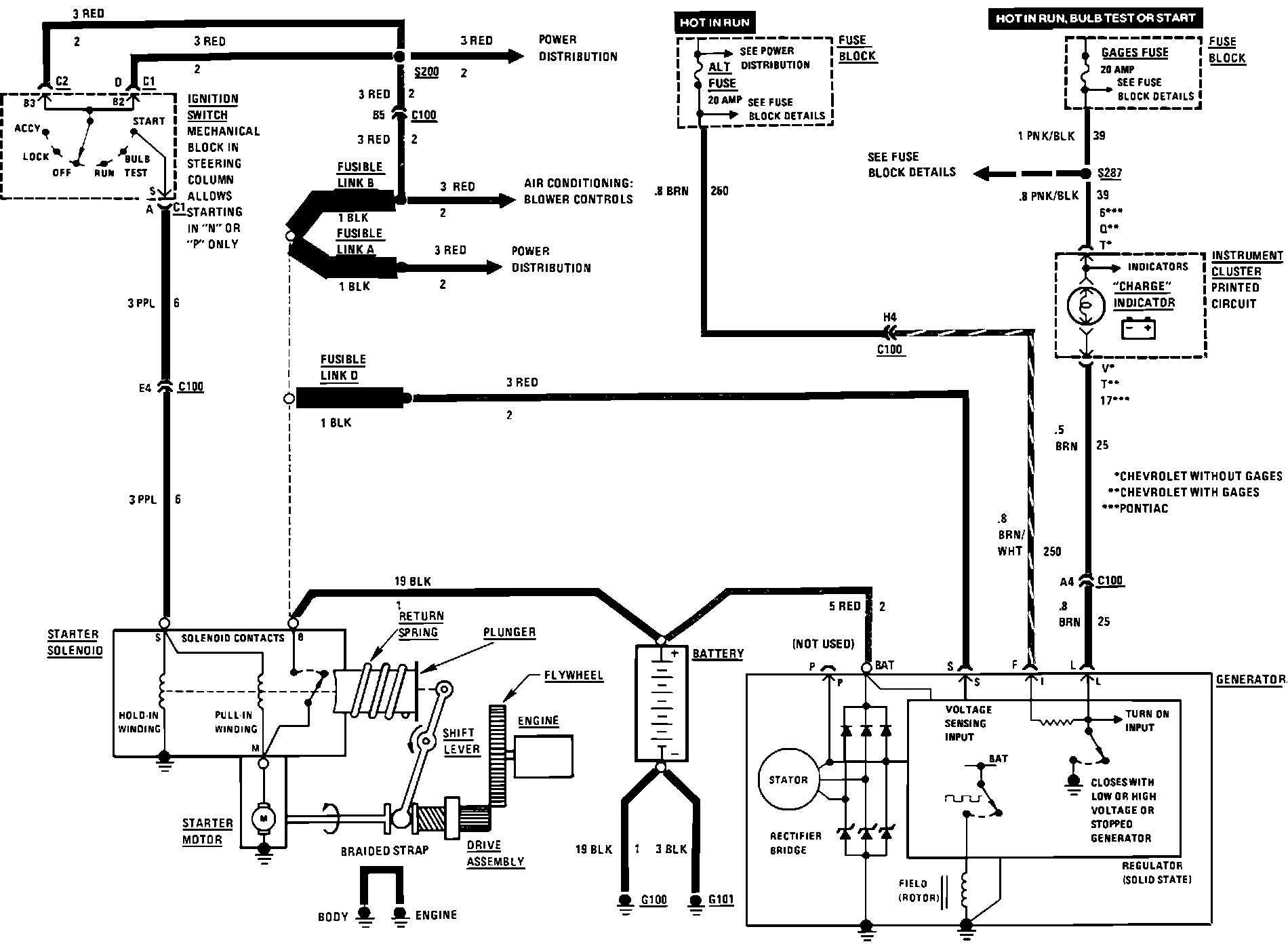

Charging & Starting System (W/Carbureted Engine):
