Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1989
>>
Caprice V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Panel Indicators
>>
Engine
Engine

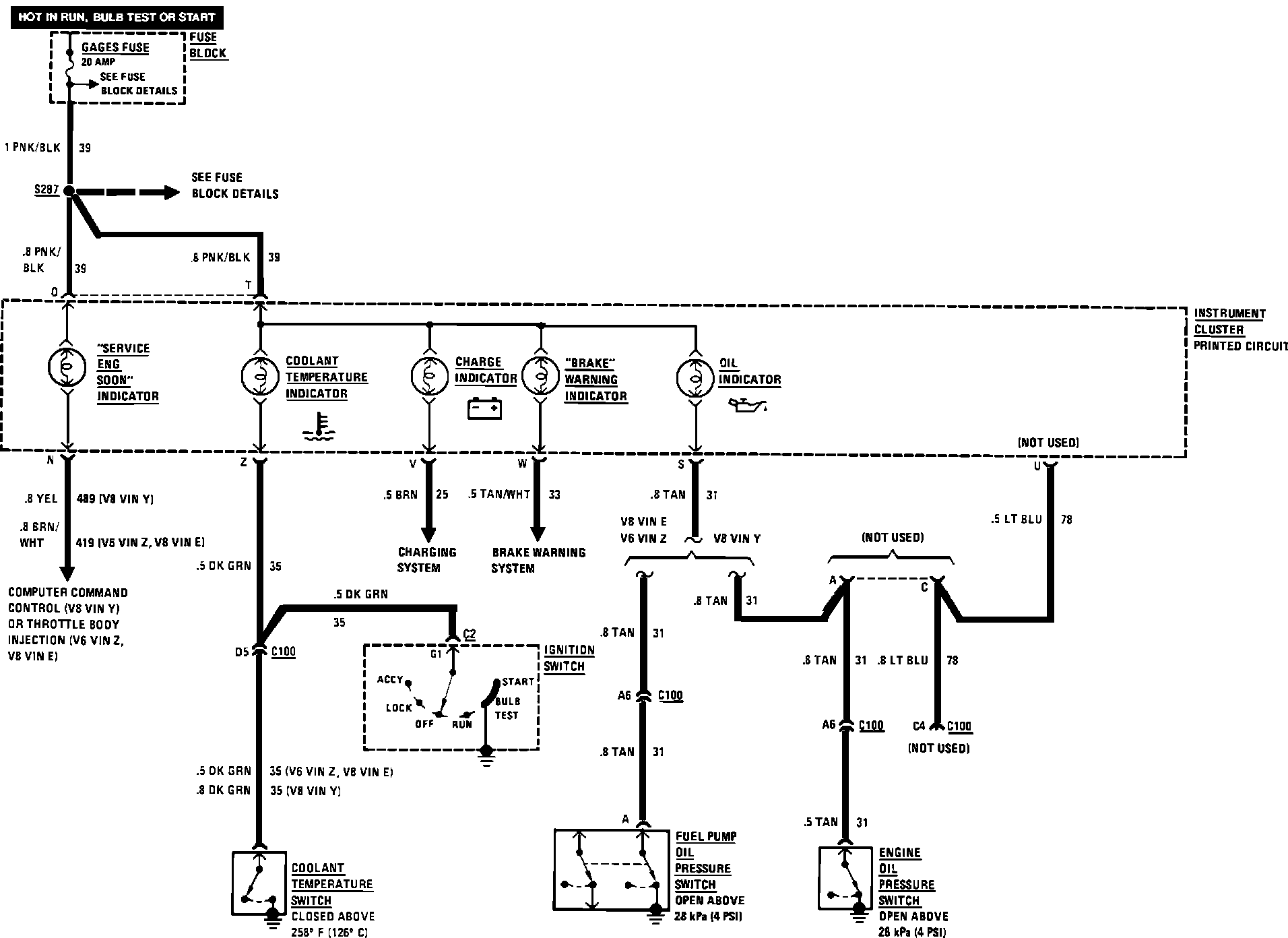

Instrument Panel Indicators (Engine):
