W/Fuel Injected Engine

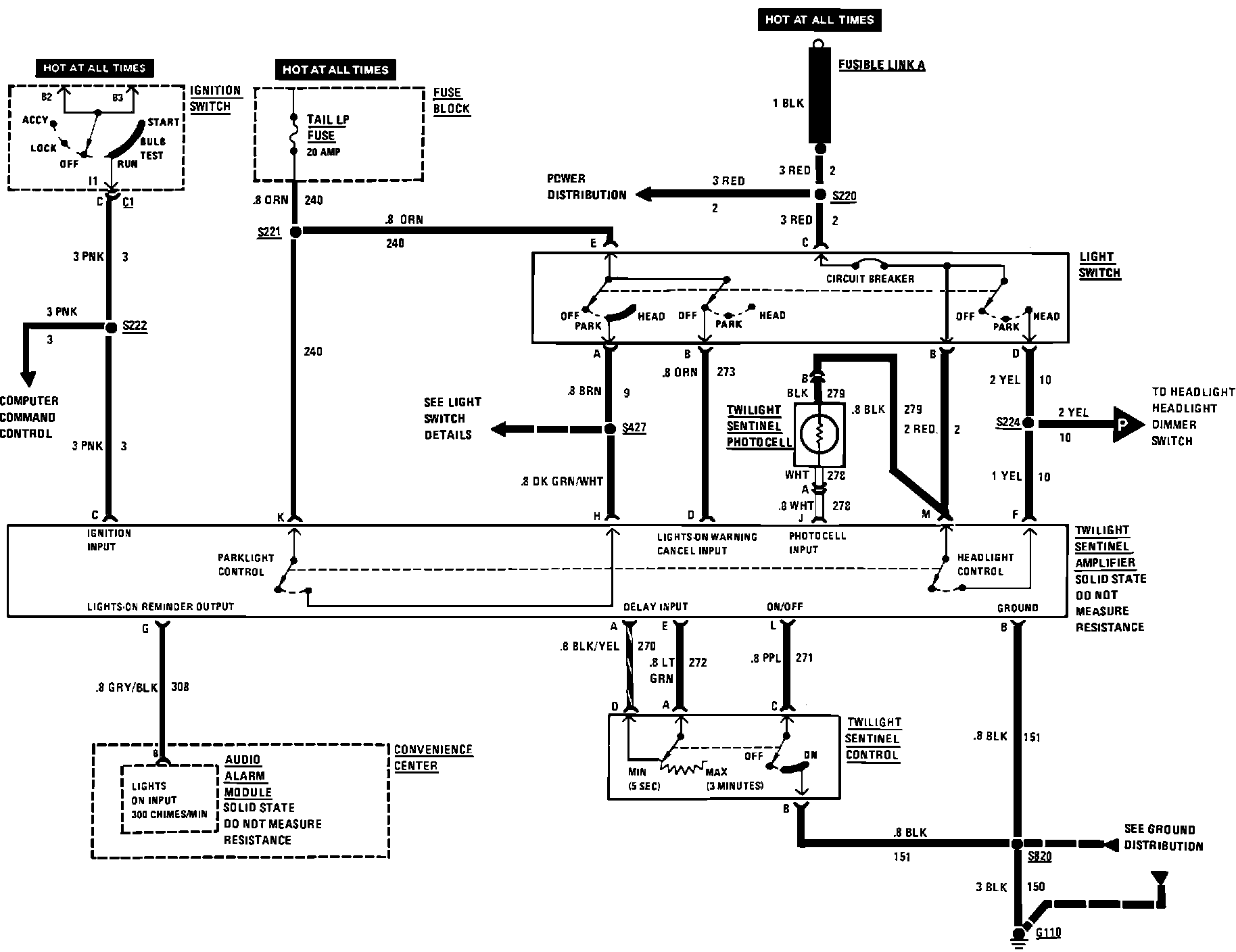

Headlamps (W/Twilight Sentinel & Fuel Injection Engine):

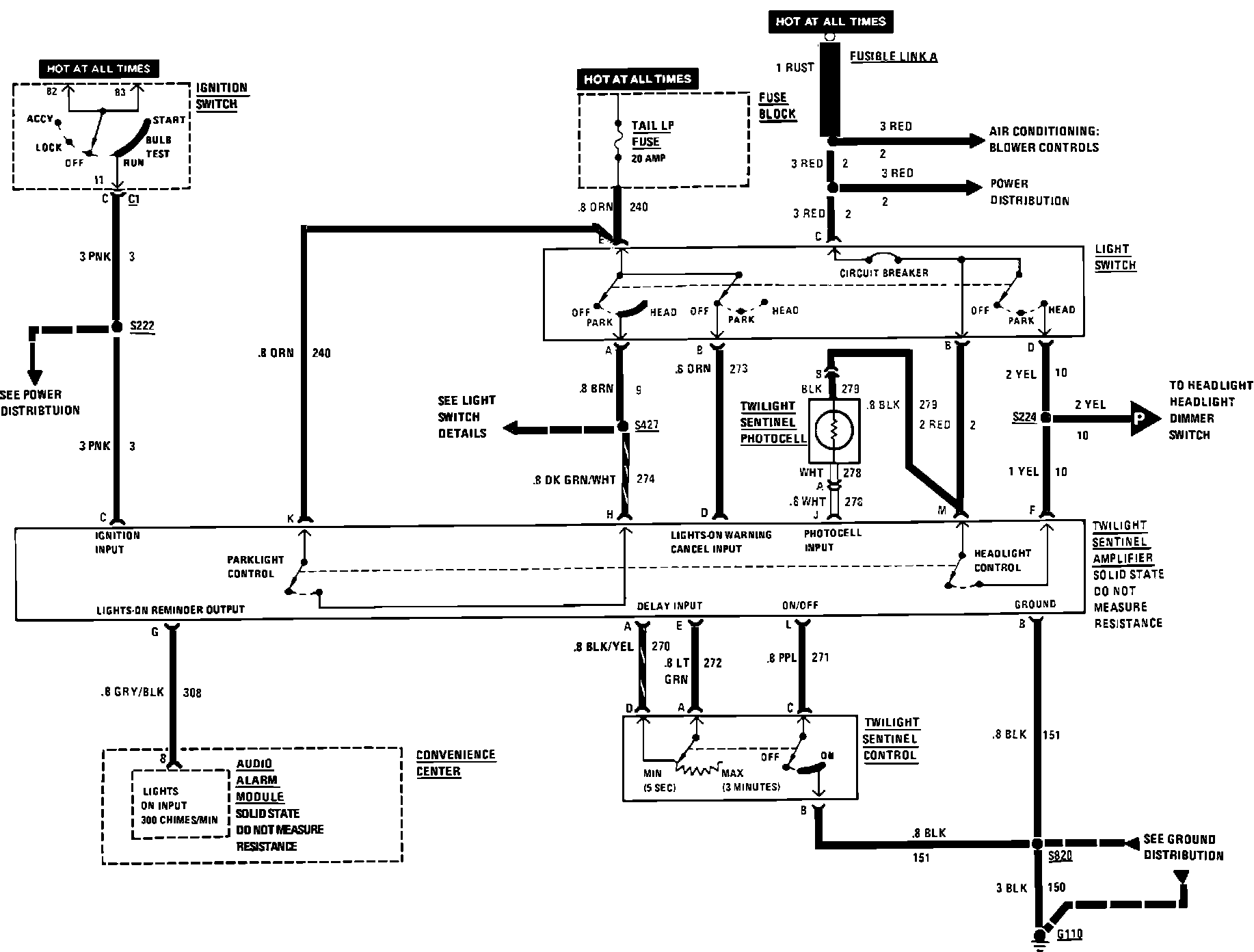

Headlamps (W/Twilight Sentinel & Fuel Injected Engine:
