Chevrolet
>>
1989
>>
Caprice V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Headlamp
>>
System Diagram
>>
W/Twilight Sentinel
>>
W/Carbureted Engine
W/Carbureted Engine

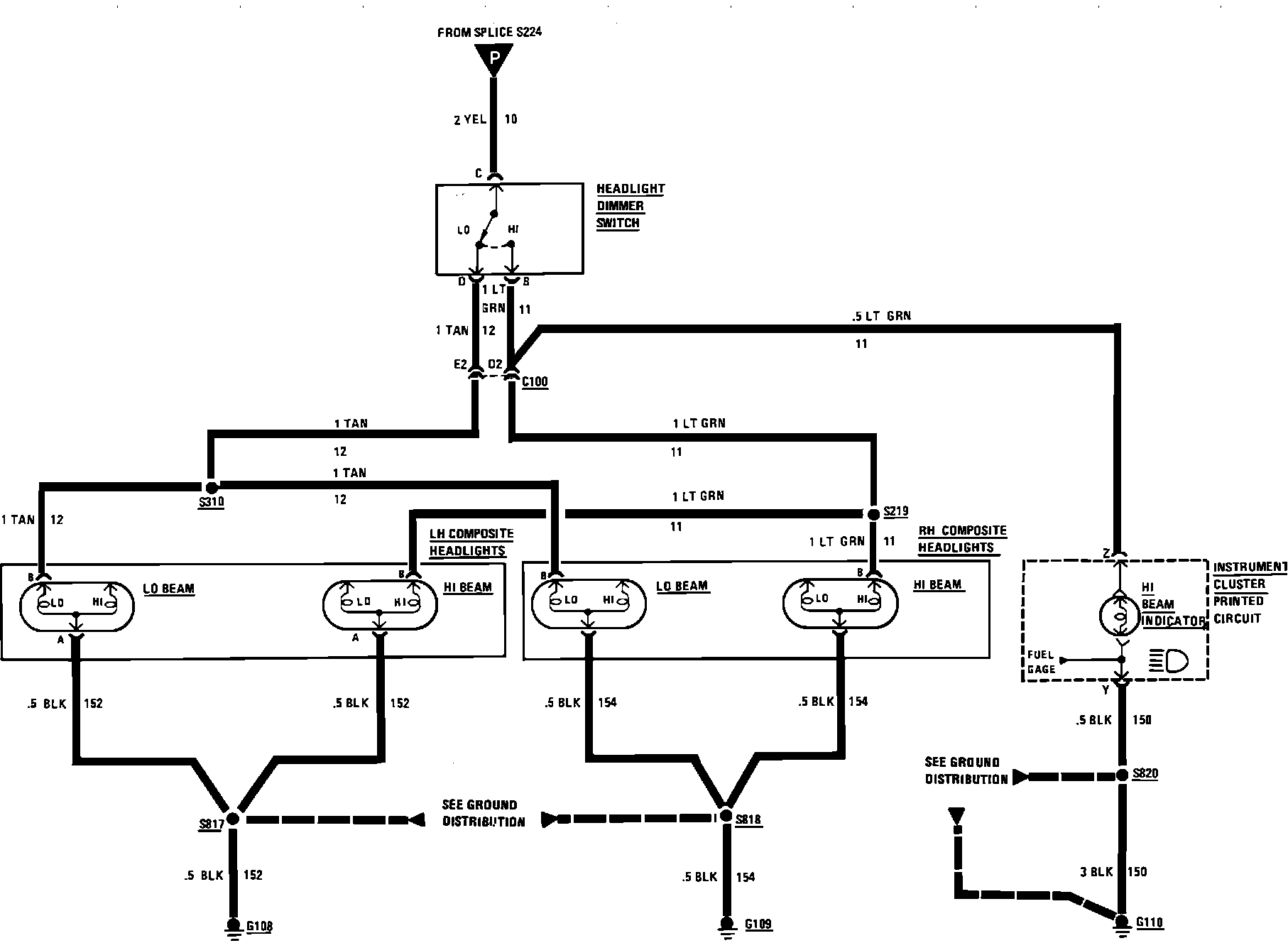

Headlamps (W/Twilight Sentinel & carbureted Engine):
