Home
>>
Chevrolet
>>
1989
>>
Camaro V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Wiper
Wiper

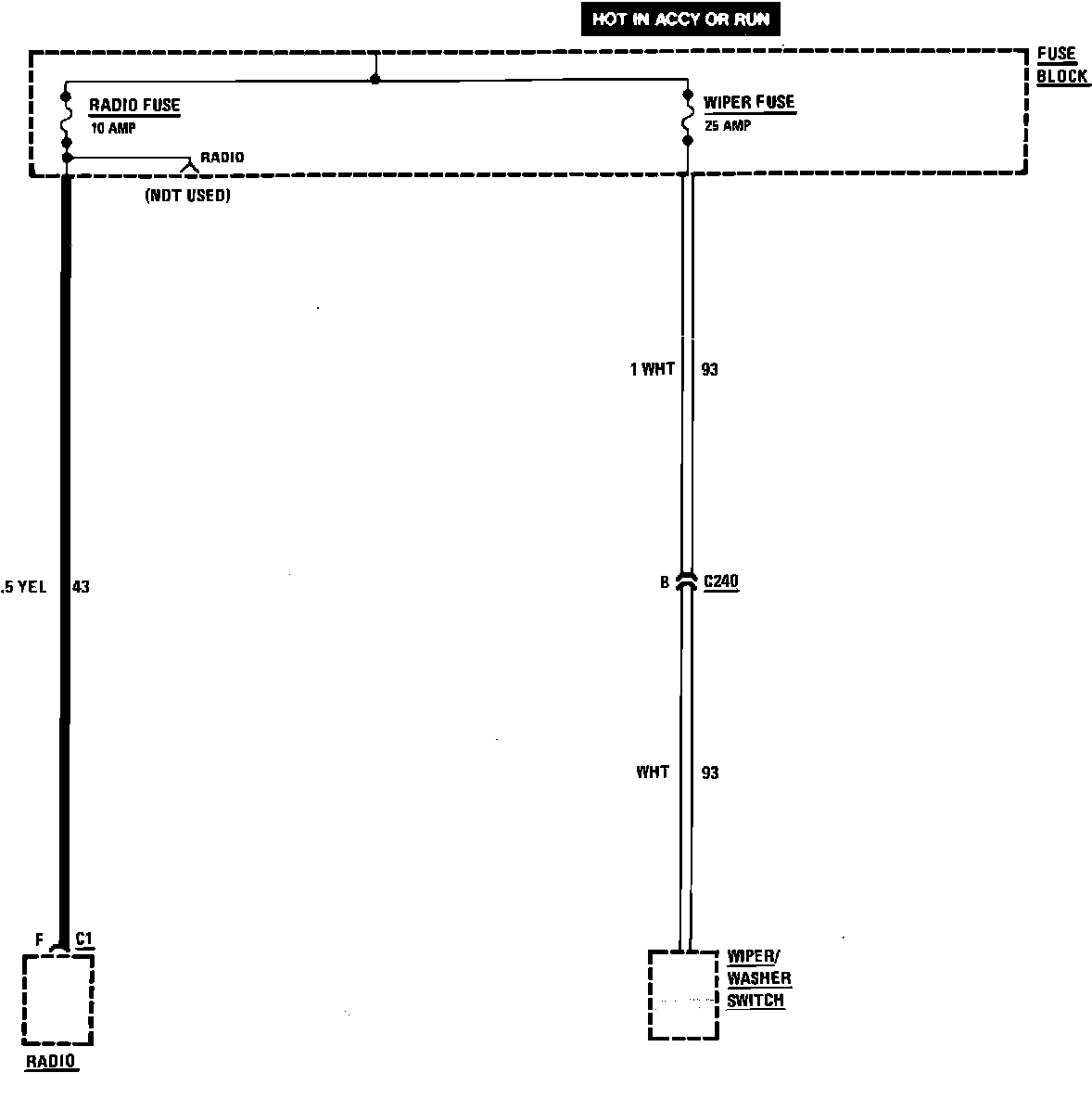

Fuse Block Details (Radio Fuse & Wiper Fuse):
