FP/INJ2 Fuse & INJ1 Fuse
FP/INJ2 Fuse & INJ1 Fuse

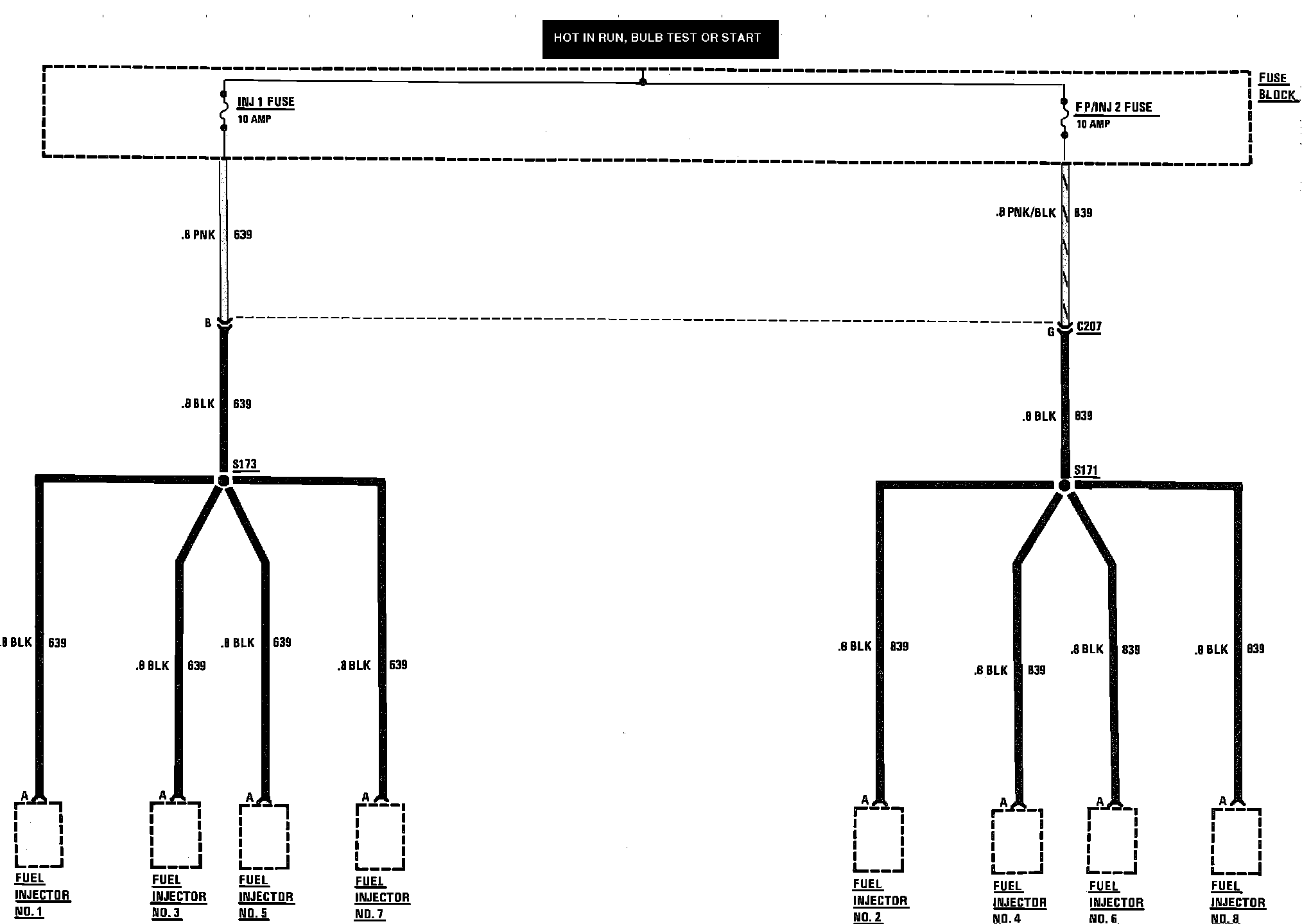

Fuse Block Details (FP/INJ2 Fuse & INJ1 Fuse, VIN F):
