Convertible - Tonneau Panel Release Electrical Diagnosis
88chevy27Number: 89-16-8B
Section: 8B
Date: OCT., 1988
Subject: CAMARO TONNEAU PANEL RELEASE ELECTRICAL DIAGNOSIS
Model and Year: 1987-89 CAMARO CONVERTIBLE
TO: ALL CHEVROLET DEALERS
The attached pages provide "Tonneau Panel Release" electrical diagnostic information not currently available in Section 8, Page 134 of the Service Manuals.
TONNEAU PANEL RELEASE
TROUBLESHOOTING HINTS
^ Try the following check before doing the System Diagnosis.
1. Check ACC Fuse by operating Cigar Lighter.
2. Check Deck Lid Limit Switch for continuity and proper adjustment.
3. Check that the Deck Lid is fully closed.
^ Go to System Diagnosis for diagnosis test.
SYSTEM DIAGNOSIS
^ Do this test below if the Tonneau Release does not operate.
TONNEAU RELEASE TEST (TABLE 1)
Connect: TEST LAMP
At: RELEASE SWITCH CONNECTOR (Connected)
For Diagnosis
Connect Correct Of Incorrect
Between Result Result
C1 (ORN) Lamp See 1
& Ground Lights
^ Operate Release Switch
C2 (BRN) Lamp See 2
& Ground Lights
^ If test results are correct, go to Table 2.
1. Check for an open in ORN (40) wire.
2. Replace Release Switch.
TONNEAU RELEASE TEST (TABLE 2)
Connect: TEST LAMP
At: HATCH RELEASE RELAY CONNECTOR (Connected) Conditions:
^ Release Switch Operated
^ Gear Selector: PARK (Automatic Transmission)
^ Parking Brake Switch:
APPLIED (Manual Transmission For Diagnosis
Connect Correct Of Incorrect
Between Result Result
1 (BRN) Lamp See 1
& Ground Lights
1 (BRN) Lamp See 2
& 3 (YEL) Lights
2 (BLK) Lamp See 3
& Ground Lights
^ If test results are correct, go to Table 3.
1. Check BRN (900) wire for an open.
2. For automatic transmission check YEL (5) wire for an open (see schematic). For manual transmission: check: YEL (5), TAN/WHT (33) wires and Parking Brake Switch for opens (see schematic).
3. Replace the Hatch Release Relay.
TONNEAU RELEASE TEST (TABLE 3)
Connect: TEST LAMP
At: RELEASE SOLENOID CONNECTOR (Disconnected) Condition:
^ Press and hold Release Switch
^ Deck Lid fully closed
For Diagnosis
Connect Correct Of Incorrect
Between Result Result
BLK (142) Lamp See 1
& Ground Lights
(Continued from previous page)
^ If test results are correct, replace the Release Solenoid.
1. Check BLK (142) wire for an open.
2. Check Deck Lid Limit Switch for proper adjustment.

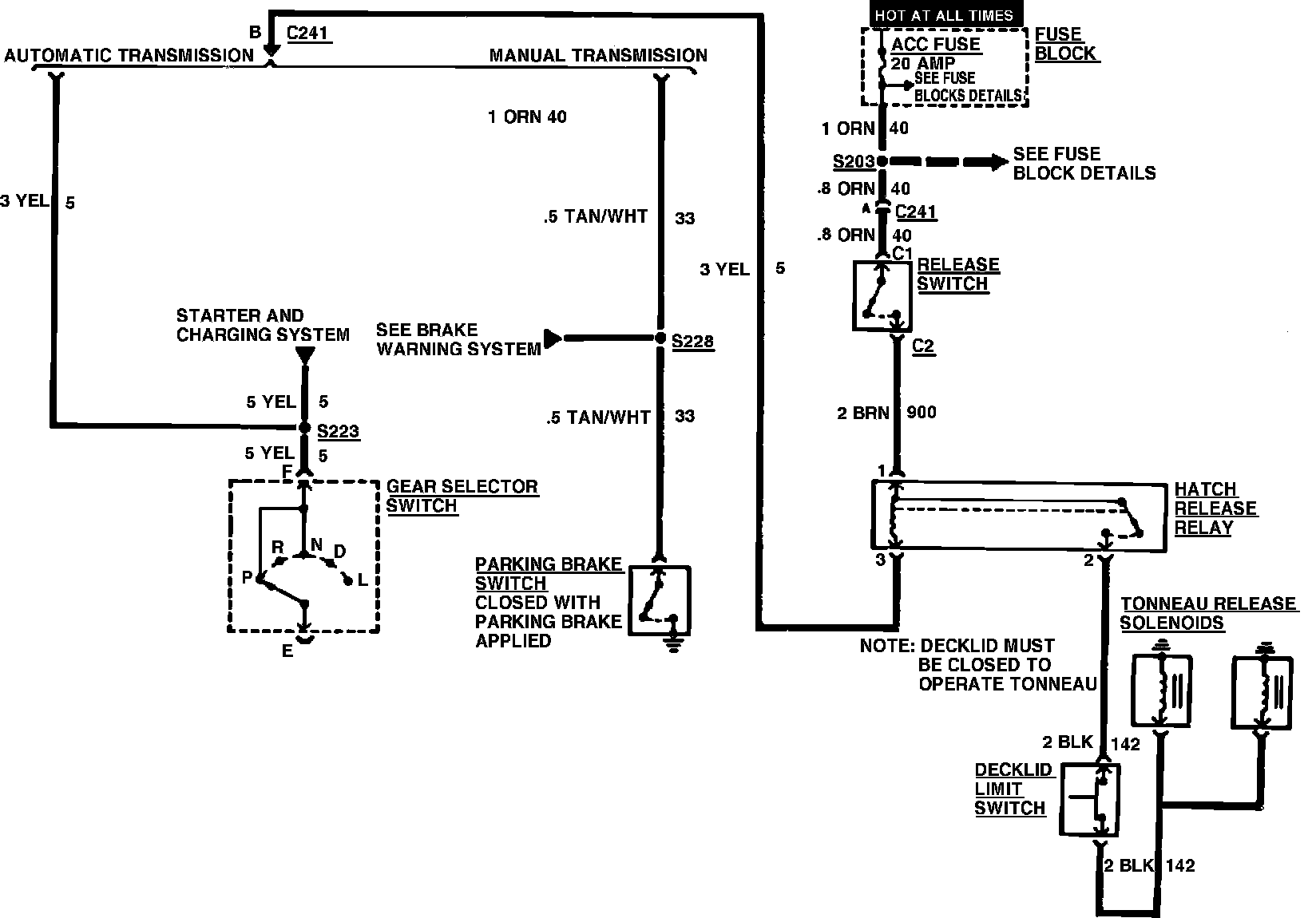

CIRCUIT OPERATION
Voltage is applied at all times through the ACC fuse to the Release Switch. With manual transmission, when the Release Switch, Parking Brake Switch and the Deck Lid Limit Switch are closed, current flows through the Hatch Release Relay coil. The relay operates and voltage is applied to the Release Solenoids. The solenoids operate and the tonneau panel opens. With automatic transmission, current flows through the Hatch Release Relay coil with the Release Switch closed, the Deck Lid Limit Switch closed and the Gear Selector Switch in PARK or NEUTRAL. The relay operates and voltage is applied to the Release Solenoids. The solenoids operate and the Tonneau Panel open.
