Clutch Housing/Engine - Fastener Torques

9216chevy04

Numbers: 91-59-7C

Section: 7C

Date: August 1990

Corporate Bulletin No.: 037303


Subject:
CLUTCH HOUSING-TO-ENGINE FASTENER TORQUES


Model and Year:
1989-91 CAMARO





TO: ALL CHEVROLET DEALERS

This information should be added to the 1989-91 Camaro Service Manual - Section 7C.

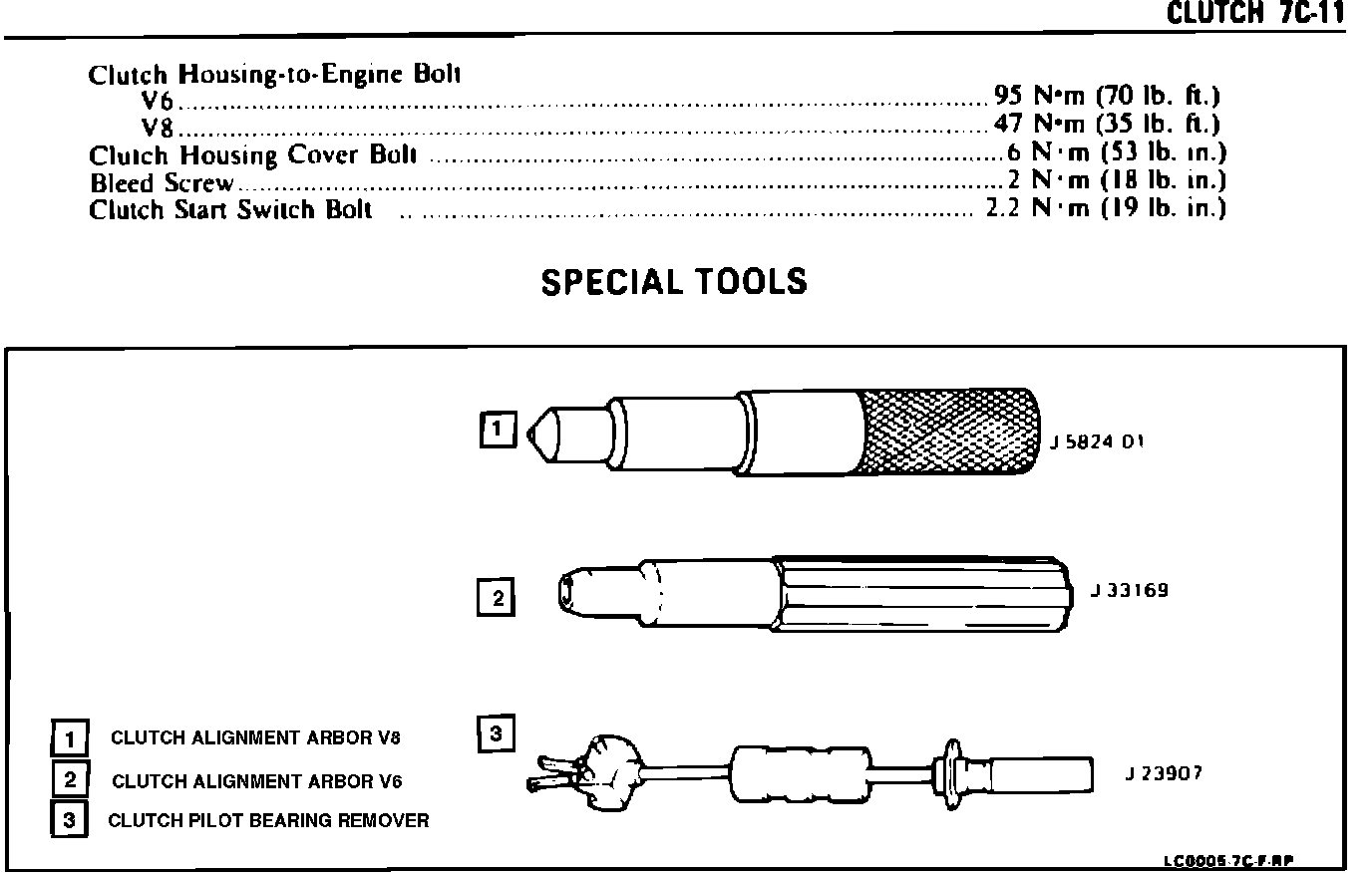

The updated Clutch Housing-to-Engine Fastener Torques (Section 7C) were changed to the following:

V6 Engines

Bolt torques were changed from 47 N-m (35 lbs.ft.) to 95 N-m (70 lbs.ft.).

V8 Engines

Bolt torques were changed from 95 N.m (70 lbs.ft.) to 47 N.m (35 lbs.ft.).
