Home
>>
Chevrolet
>>
1989
>>
Camaro V8-305 5.0L VIN F FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relays
>>
Fuel Pump Relay
Fuel Pump Relay
Burn-Off Relay.:

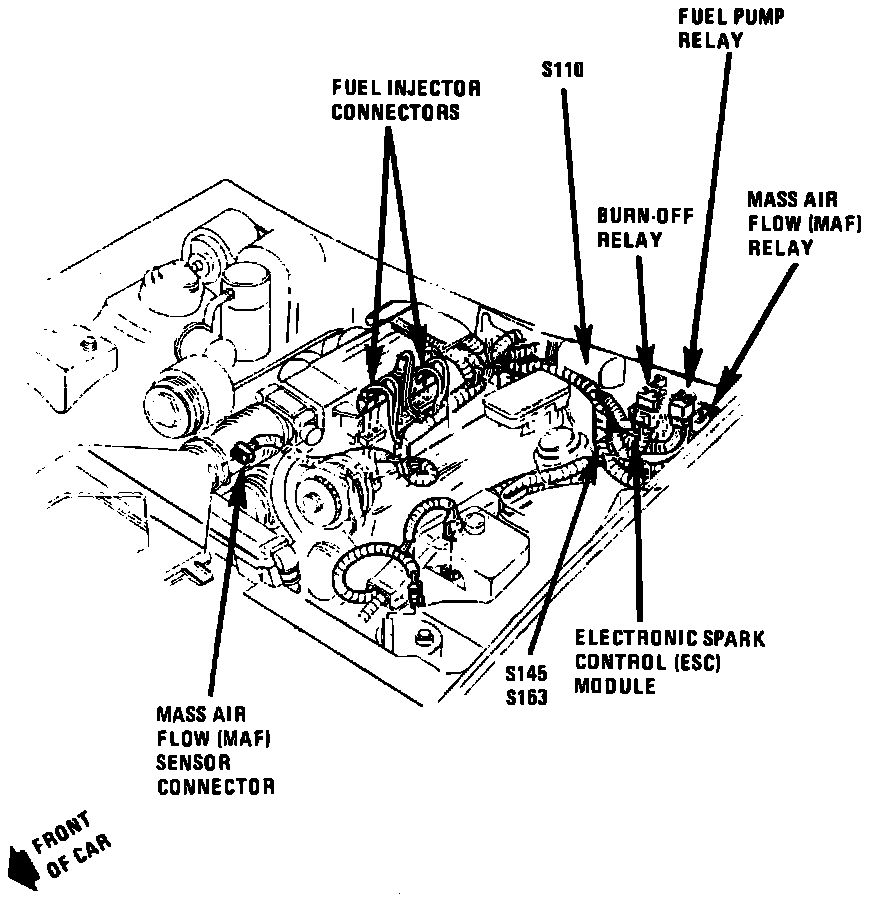

Engine Compartment Component Location.:
LH Rear Corner Of Engine Compartment
Applicable to: Camaro w/V8-305/5.0L VIN F
