Home
>>
Chevrolet
>>
1989
>>
Camaro V6-173 2.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G117
G117

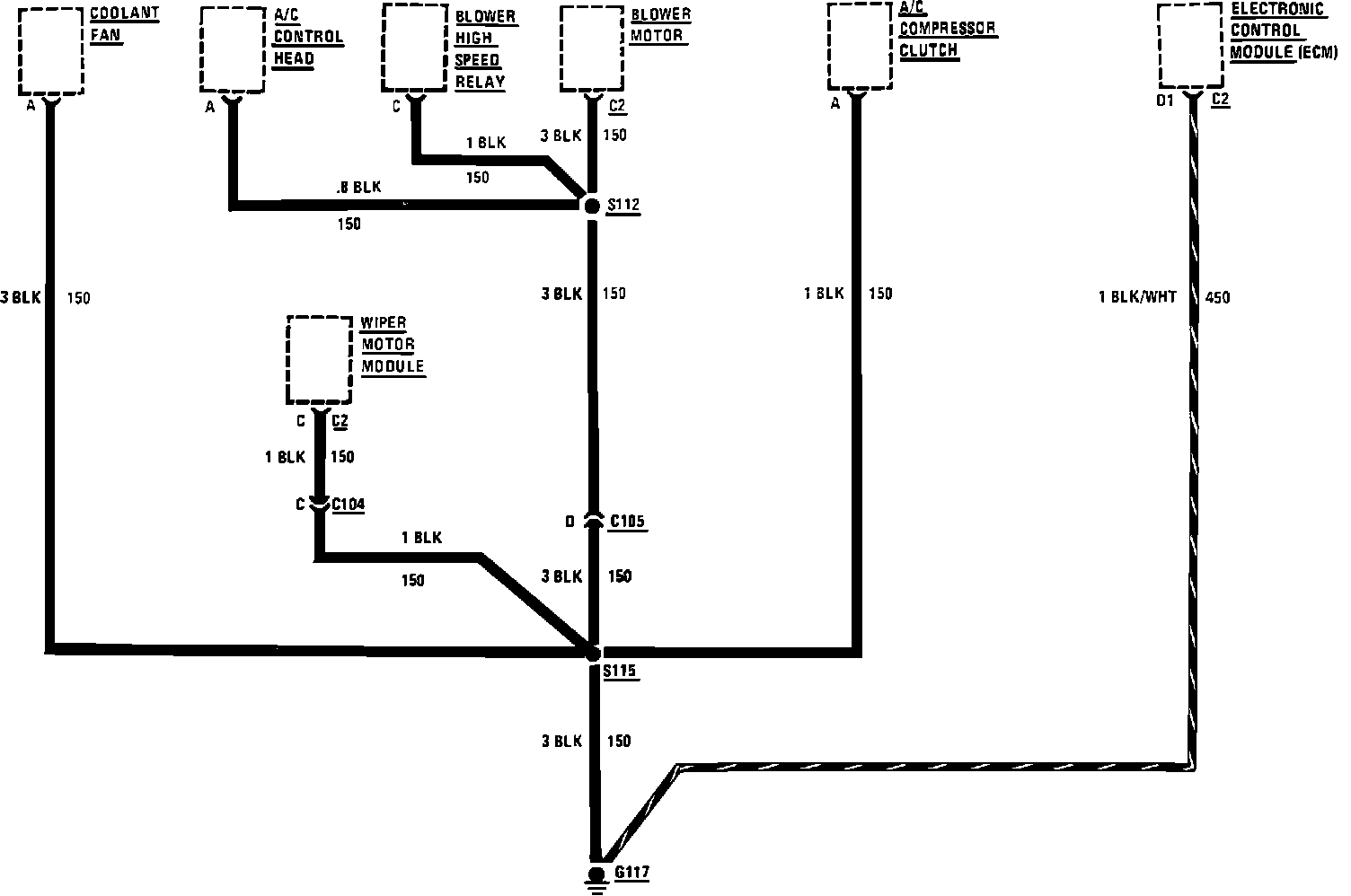

Ground Distribution (G117):
