Left Side

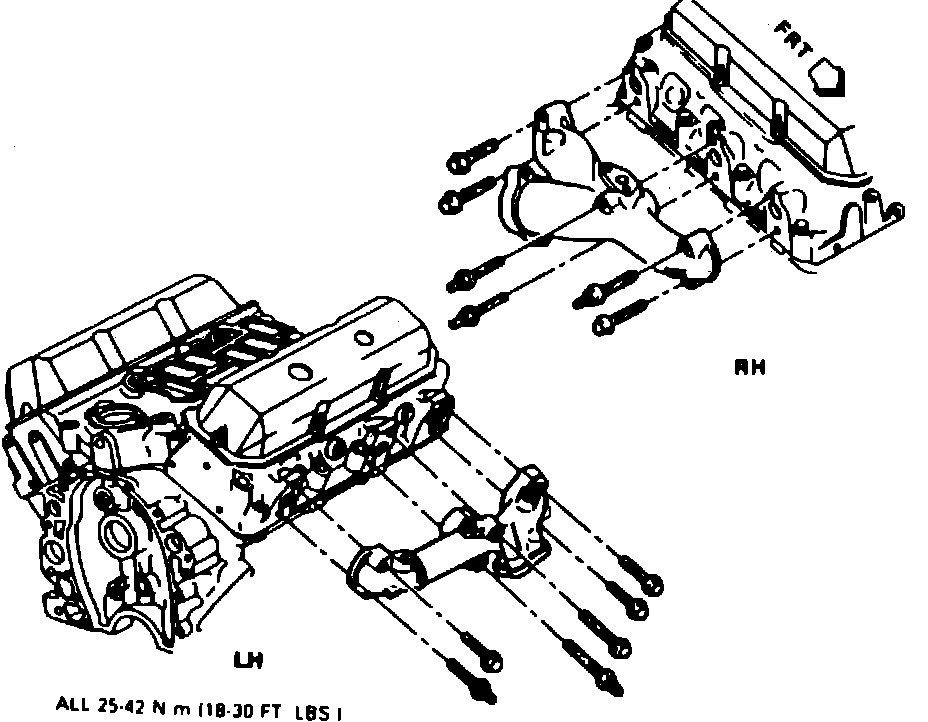

Fig. 4 Exhaust Manifold Replacement:

1. Disconnect battery ground cable.
2. Raise and support vehicle.
3. Disconnect exhaust crossover pipe from exhaust manifold, then lower vehicle.
4. Remove power steering pump rear bracket.
5. Remove exhaust manifold attaching bolts and nut, then remove exhaust manifold and gasket, Fig. 4.
6. Reverse procedure to install.
