Home
>>
Chevrolet
>>
1989
>>
Beretta L4-121 2.0L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse 10
Fuse 10

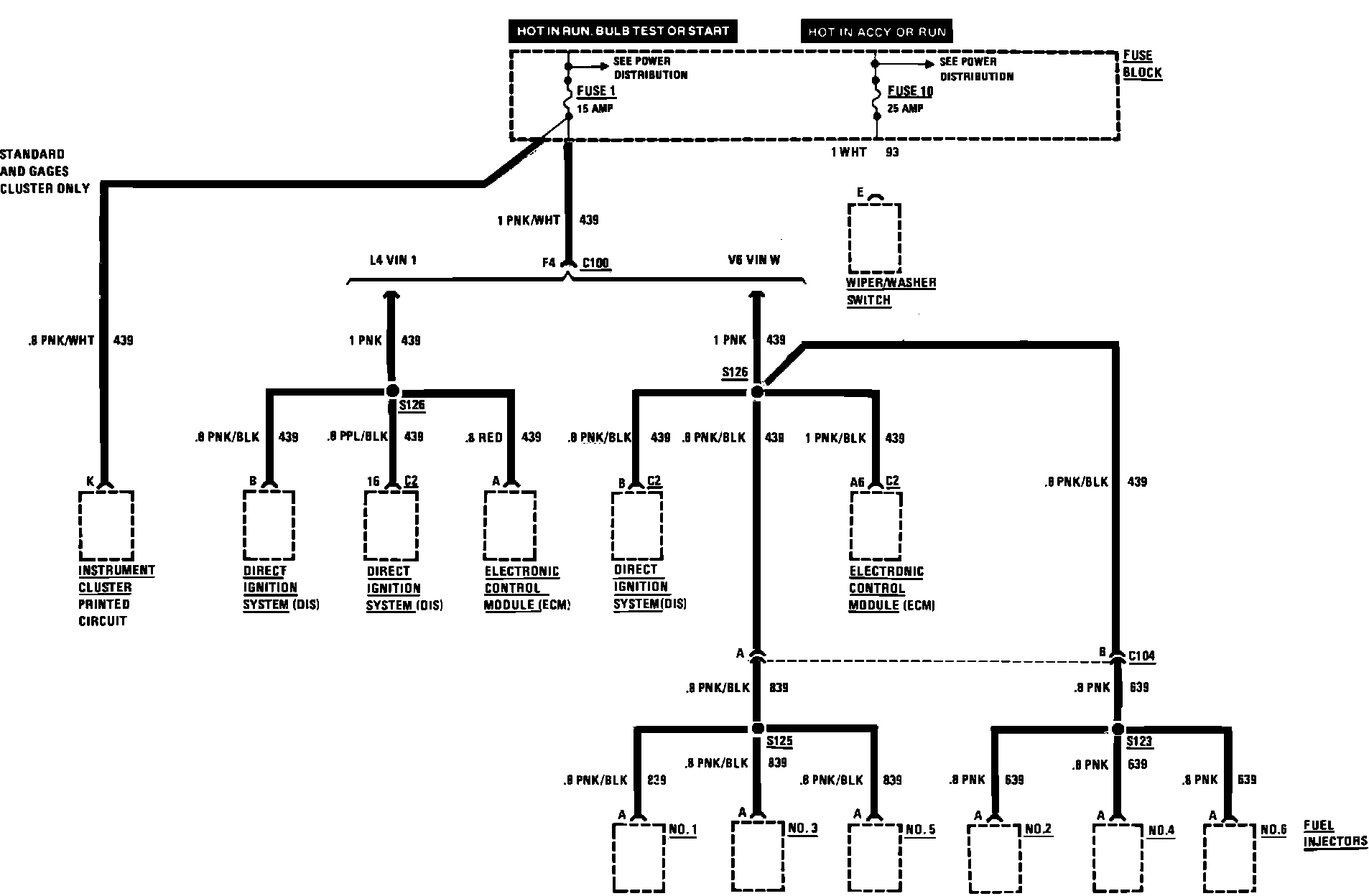

Fuse Block Detail (Fuse 1 & 10):
