Home
>>
Chevrolet
>>
1989
>>
Beretta L4-121 2.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G301
G301

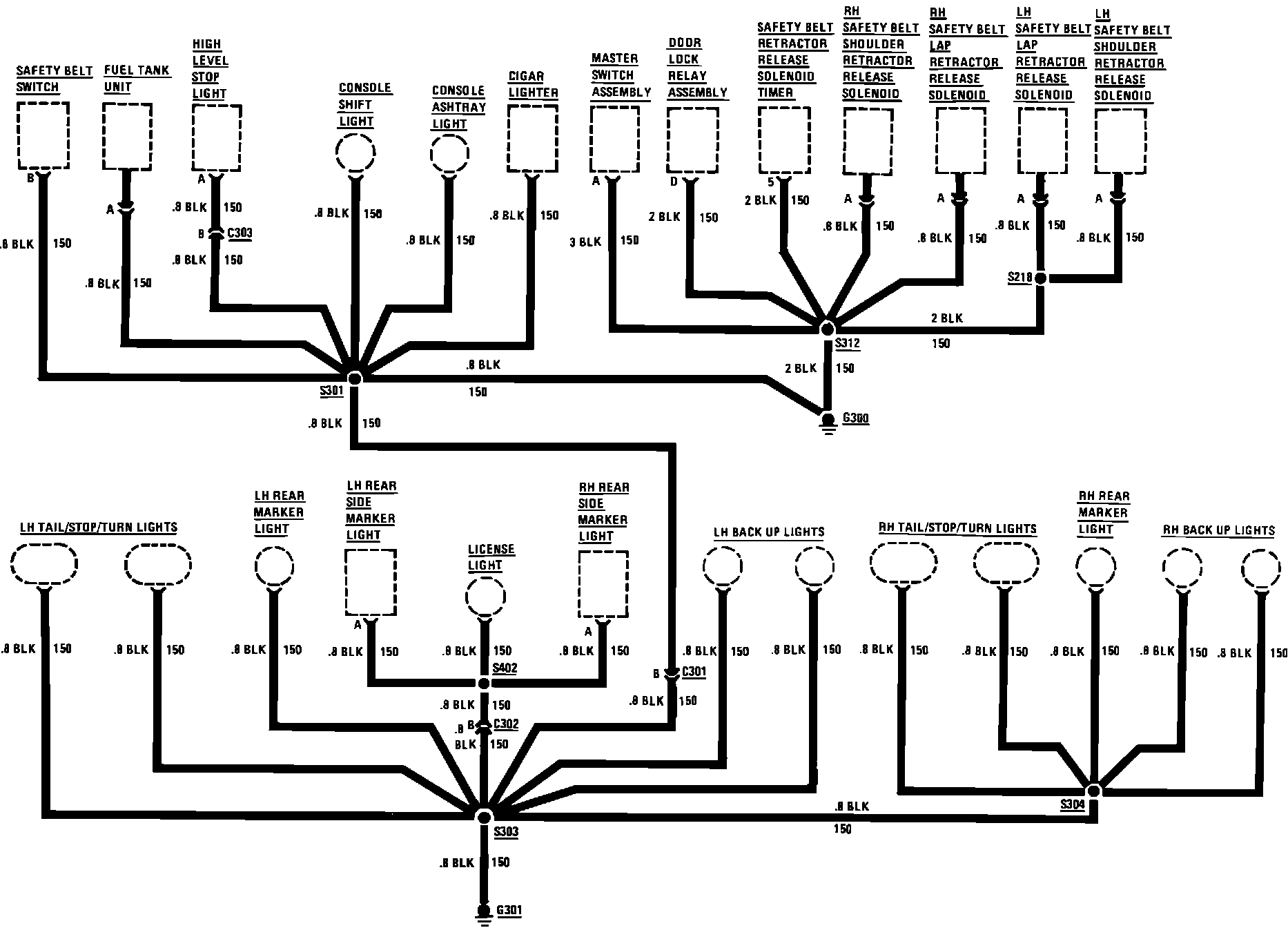

Ground Distribution (G300 & G301):
