Refrigerant Pressure Sensor / Switch
>>
Locations
>>
A/C Low Side Pressure Switch
A/C Low Side Pressure Switch

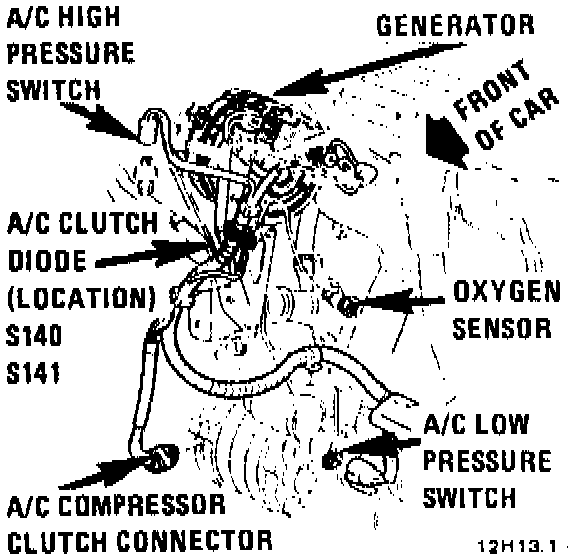

A/C High And Low Side Pressure Switches:
The Low Side Pressure Switch is located at the RH front of the engine compartment on the high pressure refrigerant line.
