Air Conditioning Vacuum Line Routing
Air Conditioning Vacuum Line Routing

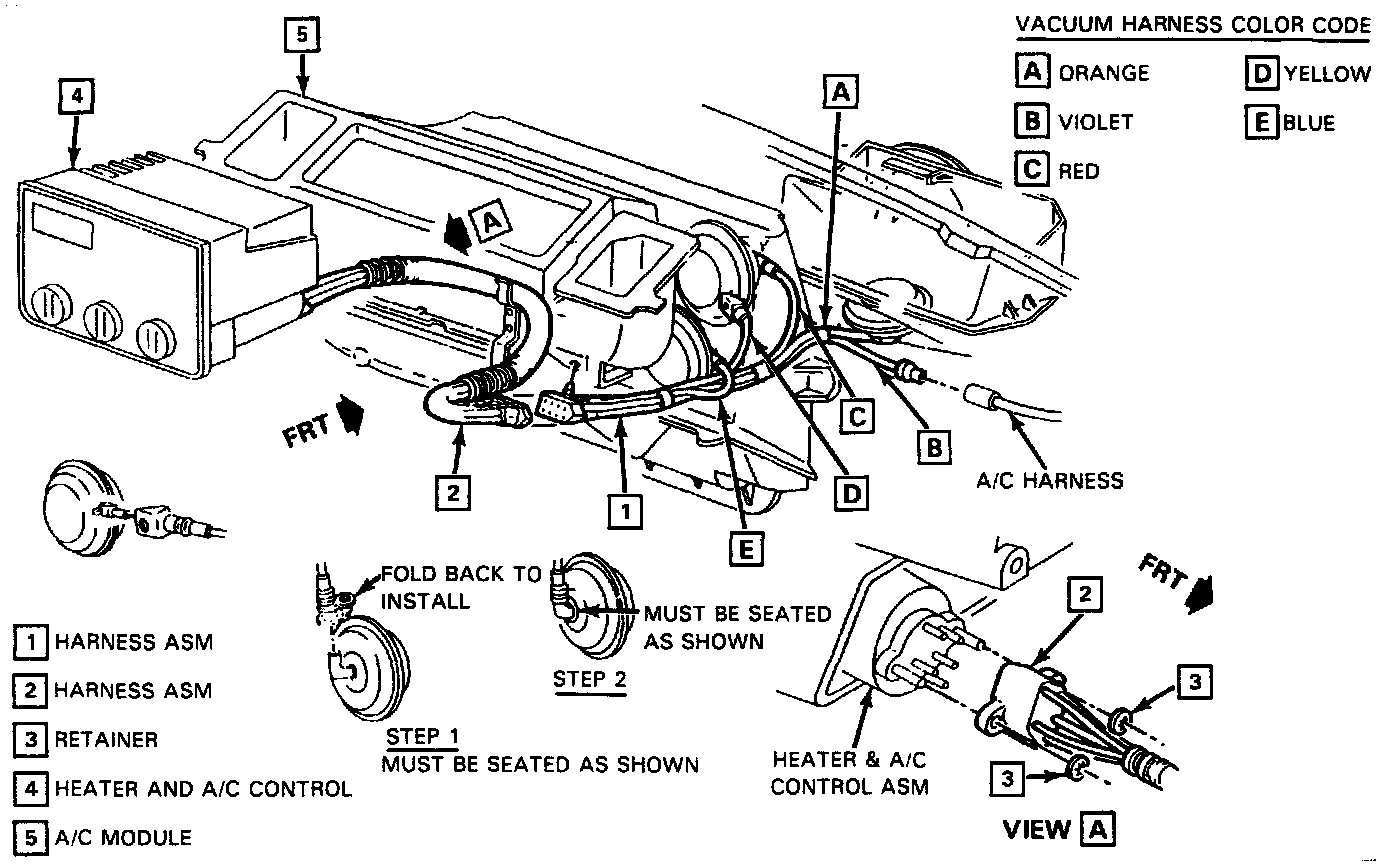

A/C Vacuum Line Routing:
A/C Vacuum Line Routing:
