Home >> Chevrolet >> 1989 >> Beretta L4-121 2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Testing and Inspection >> Component Tests and General Diagnostics >> With Air Conditioning >> Test B: A/C Blower Relay Test >> Table 1

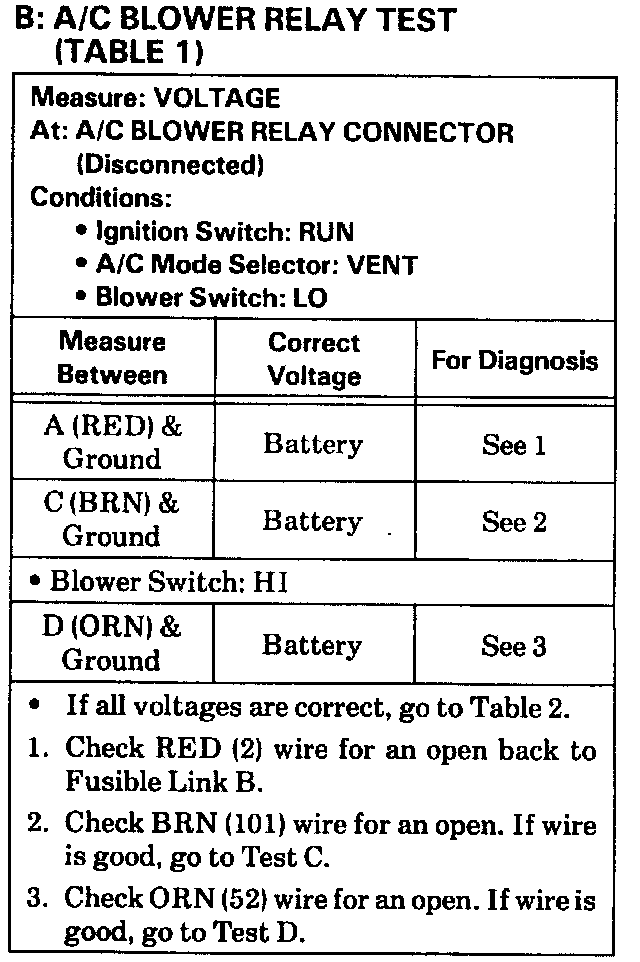

Table 1

Test B A/C Blower Relay Test Table 1:
