Home
>>
Chevrolet
>>
1989
>>
Beretta L4-121 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Fuse 2
Fuse 2

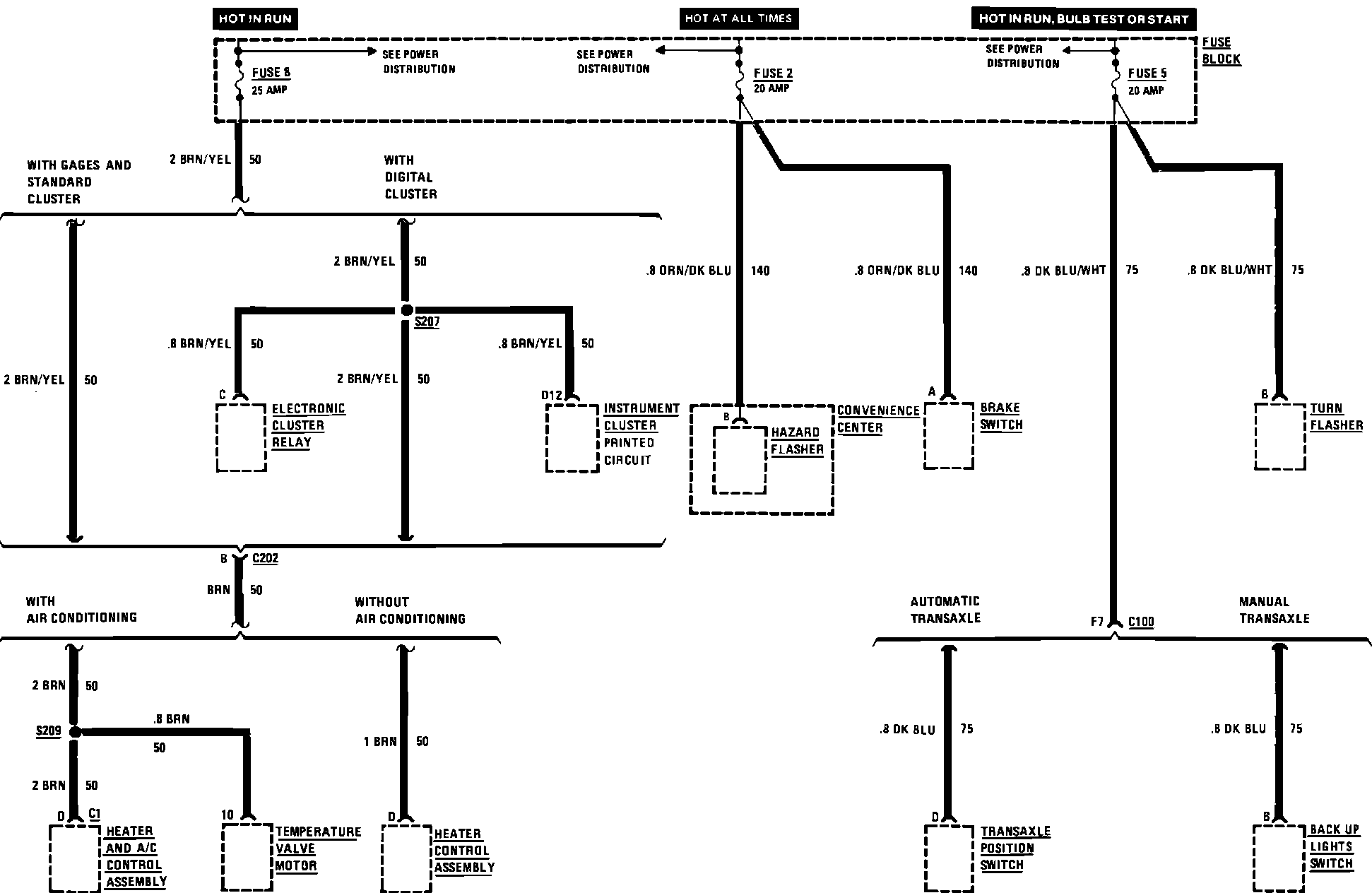

Fuse Block Detail (Fuses 2, 5 & 8):
