Beretta L4-121 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relays
>>
Door Lock Relay Assembly

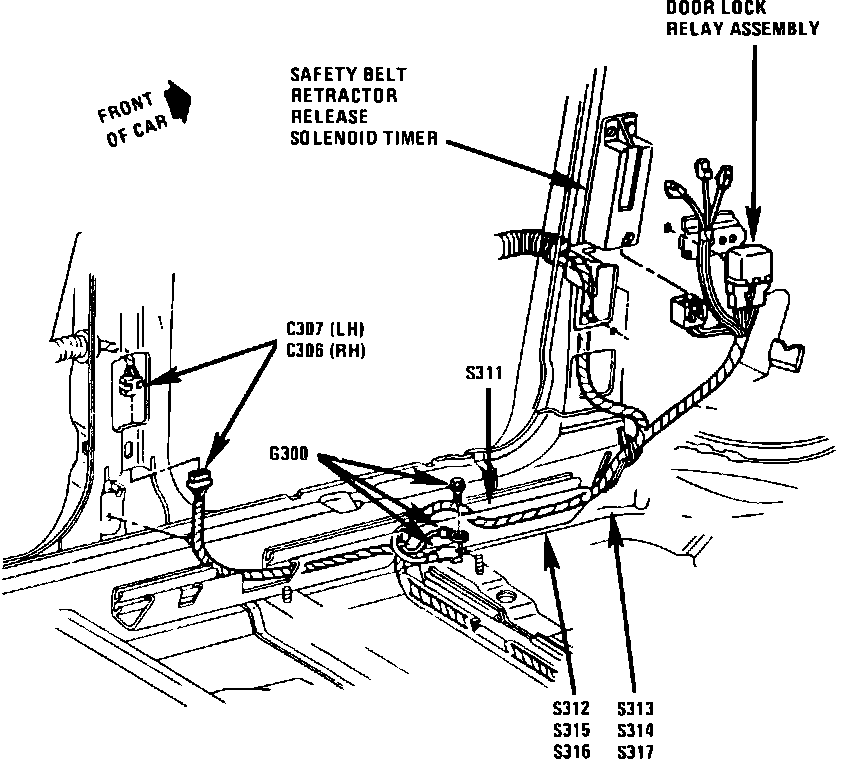

Door Lock Relay Assembly
LH Shroud:
Behind I/P, Near LH Shroud
