Removal/Installation

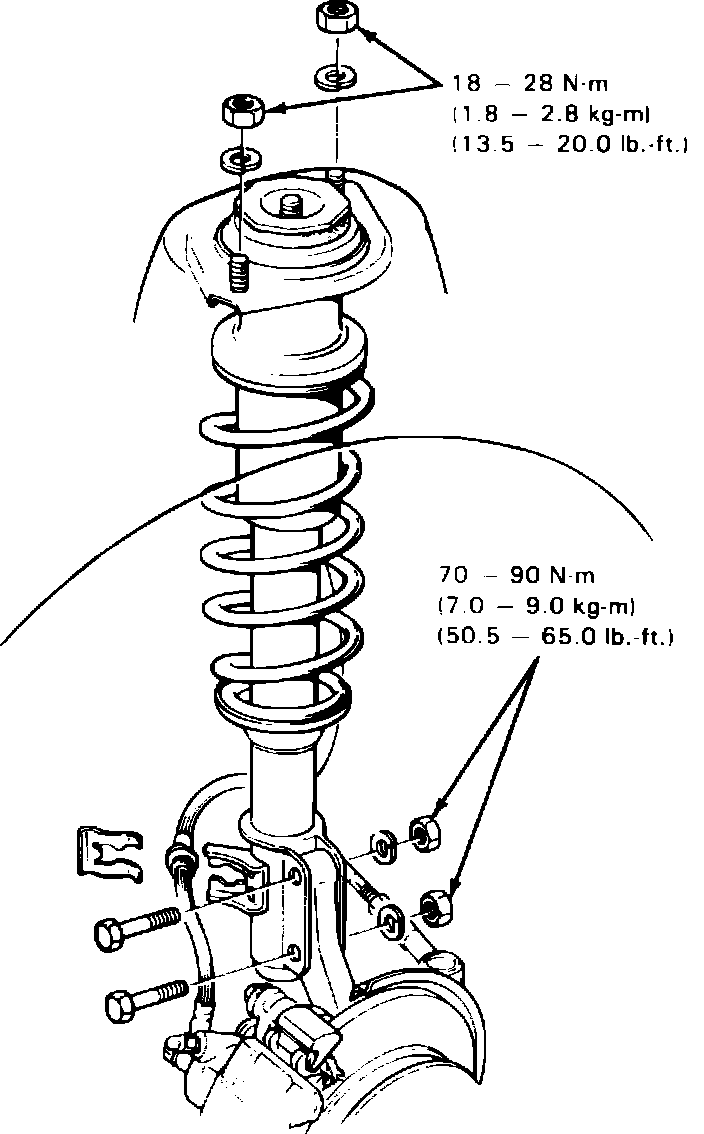

Fig. 1 Removing MacPherson strut:

1. Raise and support vehicle allowing front suspension to hang free.
2. Remove front wheel.
3. Remove E-clip from brake hose and disengage hose from strut bracket, Fig. 1.
4. Support lower control arm and knuckle assembly and remove strut to knuckle bolts.
5. Remove upper strut mount nuts and remove strut from vehicle.
6. Reverse procedure to install.
