Stabilizer Bar: Service and Repair

Fig. 3 Stabilizer bar and bushings:

1. Raise and support vehicle.
2. Remove both front wheels.
3. Remove stabilizer bar bracket bolts, Fig. 3.
4. Remove nuts from stabilizer bar ends and disconnect stabilizer bar ends from suspension control arms.

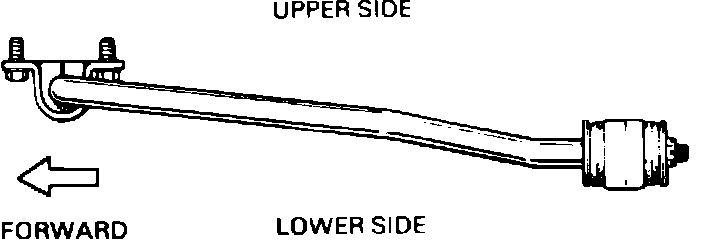

Fig. 4 Correct installation of stabilizer bar:

5. Reverse procedure to install. Refer to Fig. 4 for proper orientation of stabilizer bar.
