Control Arm: Service and Repair

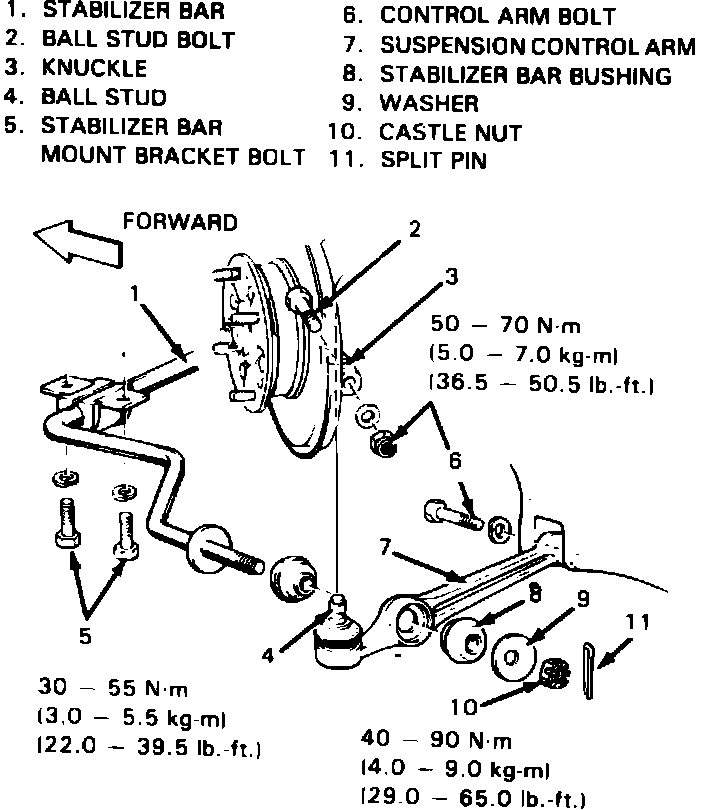

Fig. 9 Removing lower control arm:

1. Raise and support vehicle.
2. Remove stabilizer bar cotter pin, castle nut, washer and bushing, Fig. 9.
3. Remove stabilizer bar bracket bolts on same side as control arm to be removed.
4. Remove ball joint stud bolt 2, Fig. 9.
5. Remove control arm bolt 5, Fig. 9, and control arm.
6. Reverse procedure to install.
