Choke Unloader

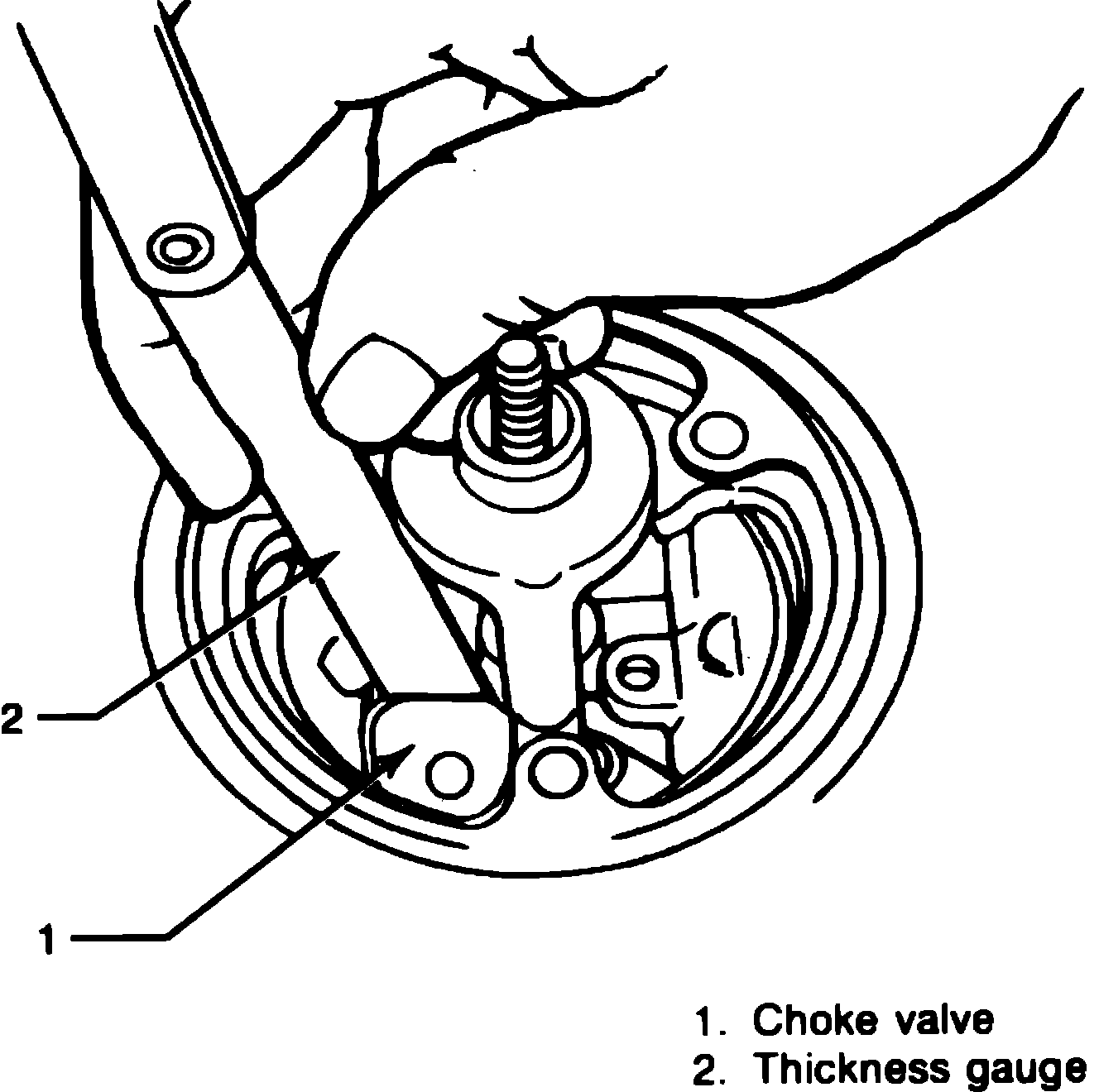

Fig. 5 Measuring choke valve clearance:

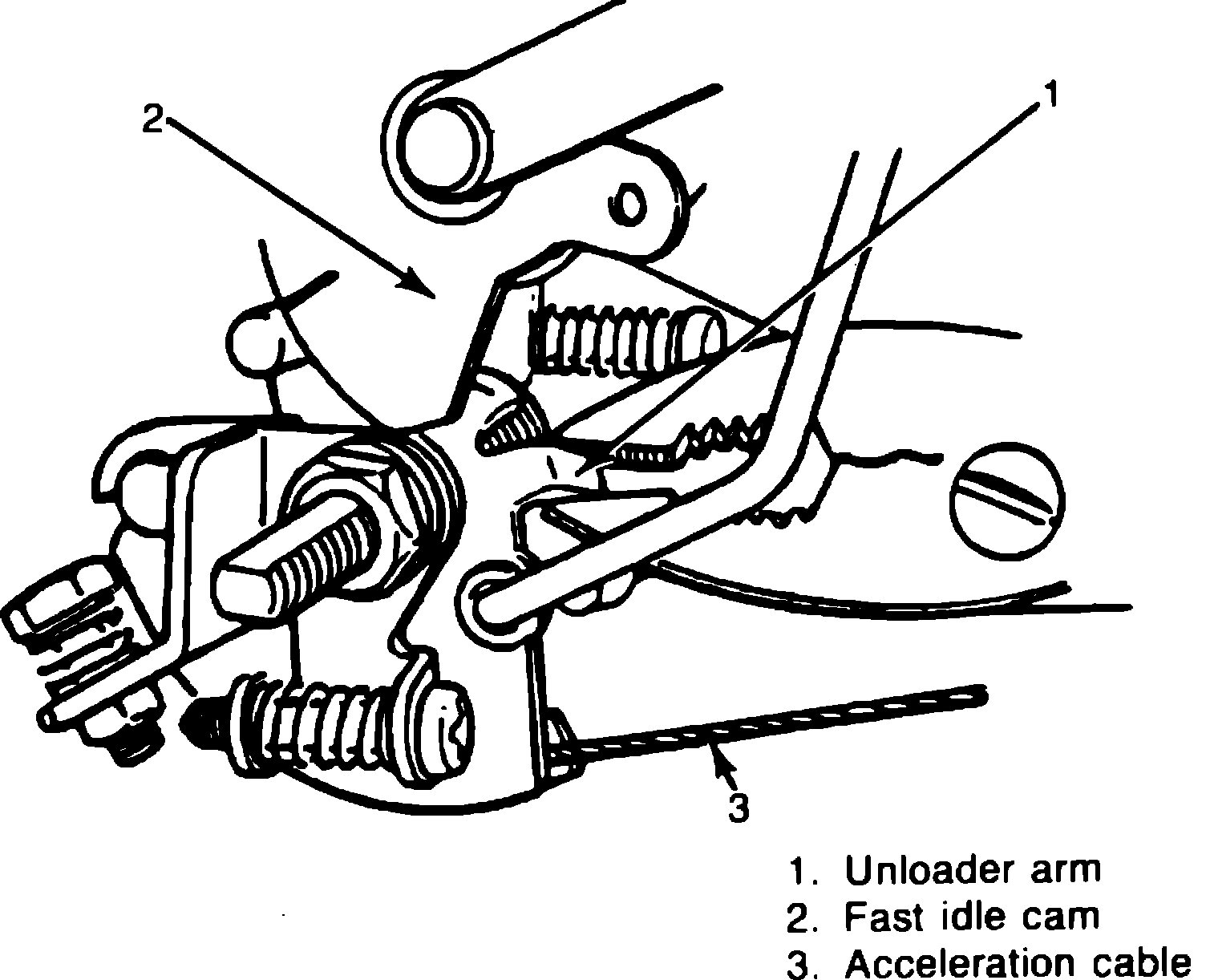

Fig. 7 Choke unloader adjustment:

1. Ensure that engine is cold, then remove air cleaner assembly.
2. Open and close throttle and ensure that choke blade is closed.
3. Hold throttle fully open, then measure clearance between choke blade and carburetor bore, Fig. 5.
4. If clearance is not as specified in ``Adjustment Specifications,'' bend unloader arm, Fig. 7, as needed to obtain specified clearance.
