Accelerator Pump: Adjustments

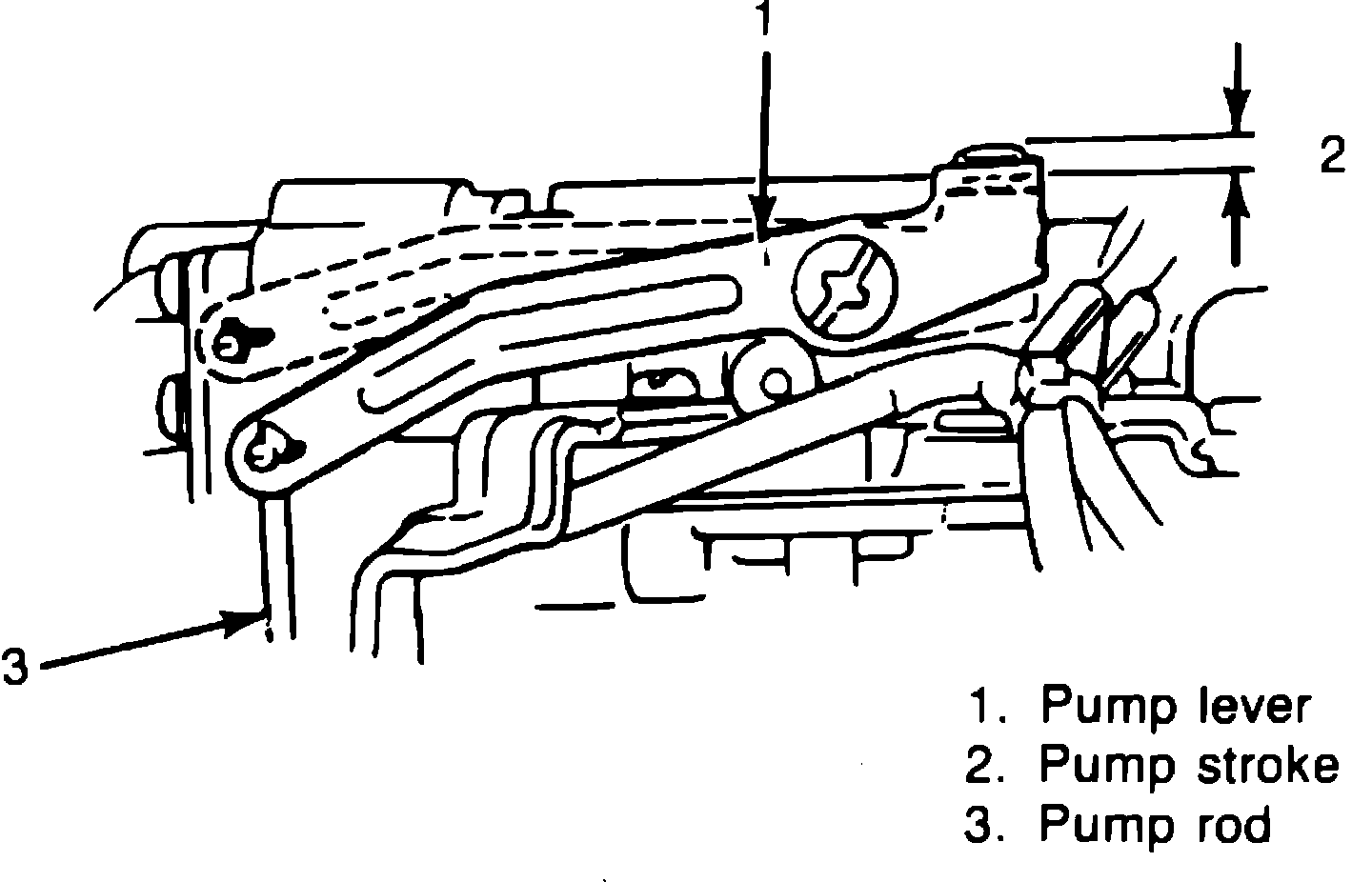

Fig. 8 Accelerator pump stroke adjustment:

1. Remove air cleaner, open throttle while observing pump operation and ensure that fuel comes out of pump discharge nozzle.
2. Start engine and run until it reaches normal operating temperature, then stop engine.
3. Measure accelerator pump lever stroke at point shown in Fig. 8, while moving throttle from fully closed to fully open position.
4. If pump stroke is not as specified in ``Adjustment Specifications,'' check operation of pump lever and link, and repair linkage or adjust length of link as needed to obtain specified stroke.
