Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse 4
Fuse 4

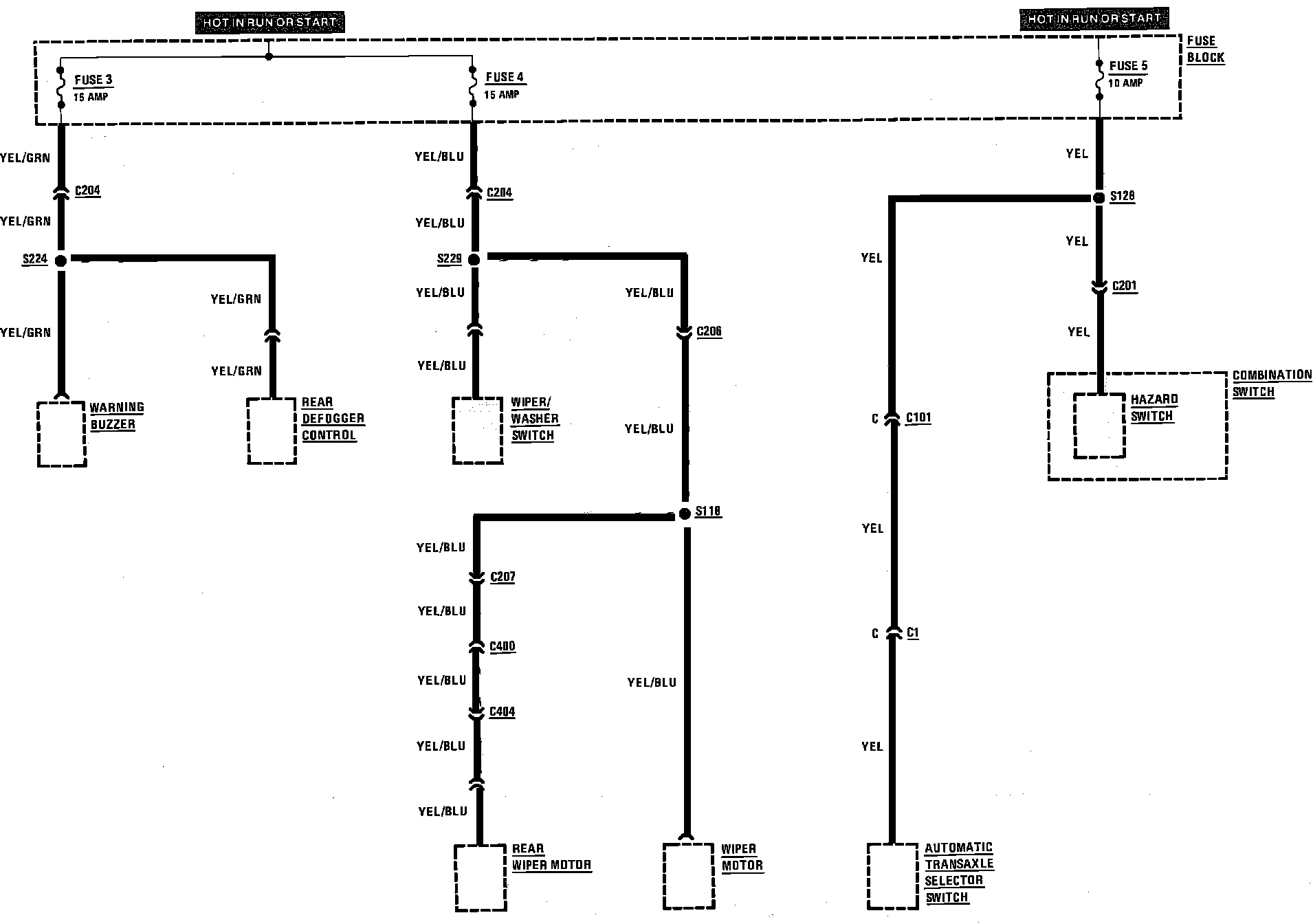

Fig. 20 Fuse Block Details. Fuses 3, 4 & 5:
