Power Distribution Wiring Circuit
Power Distribution Wiring Circuit

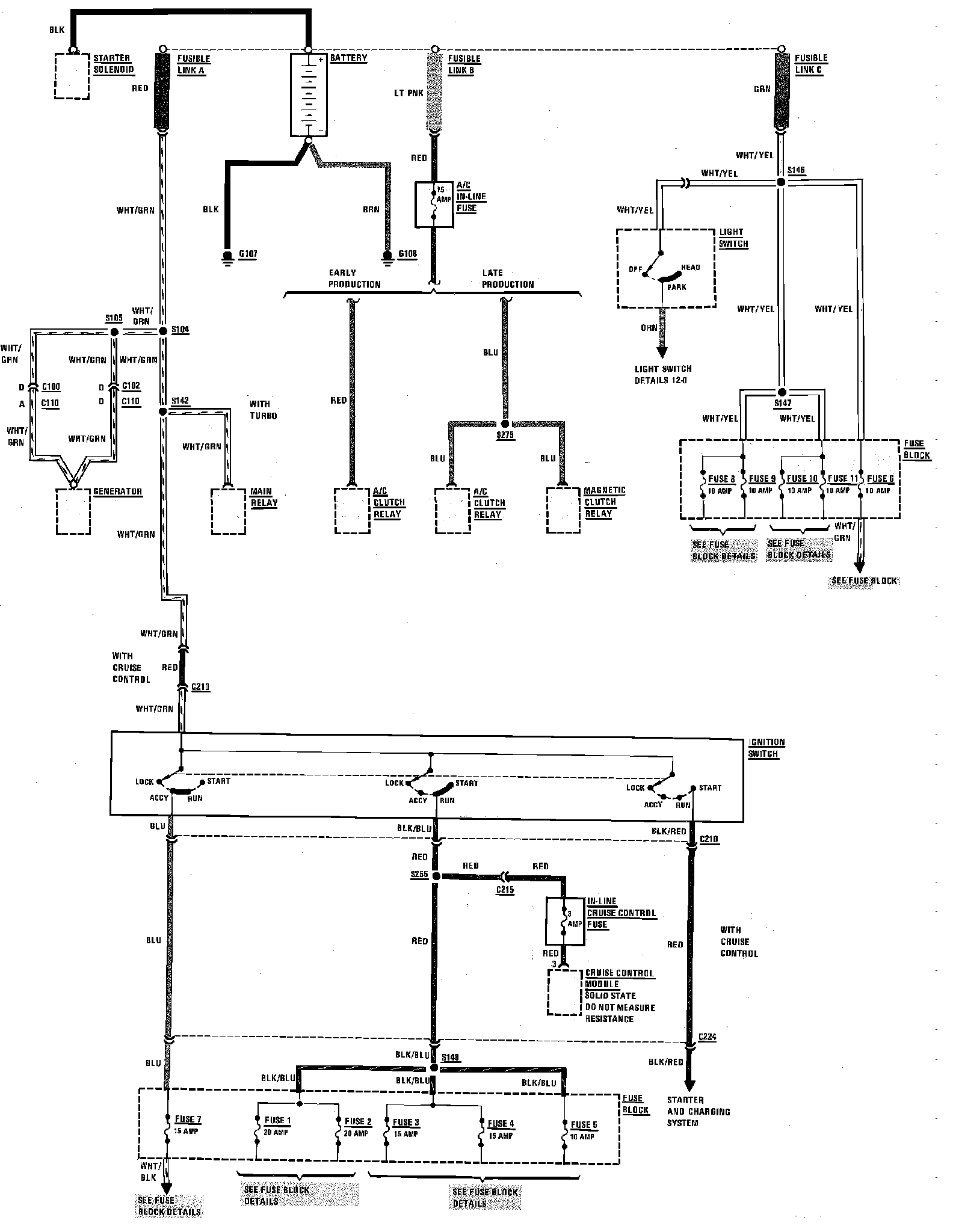

Fig. 39d Power Distribution Wiring Circuit.:
