Brake Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

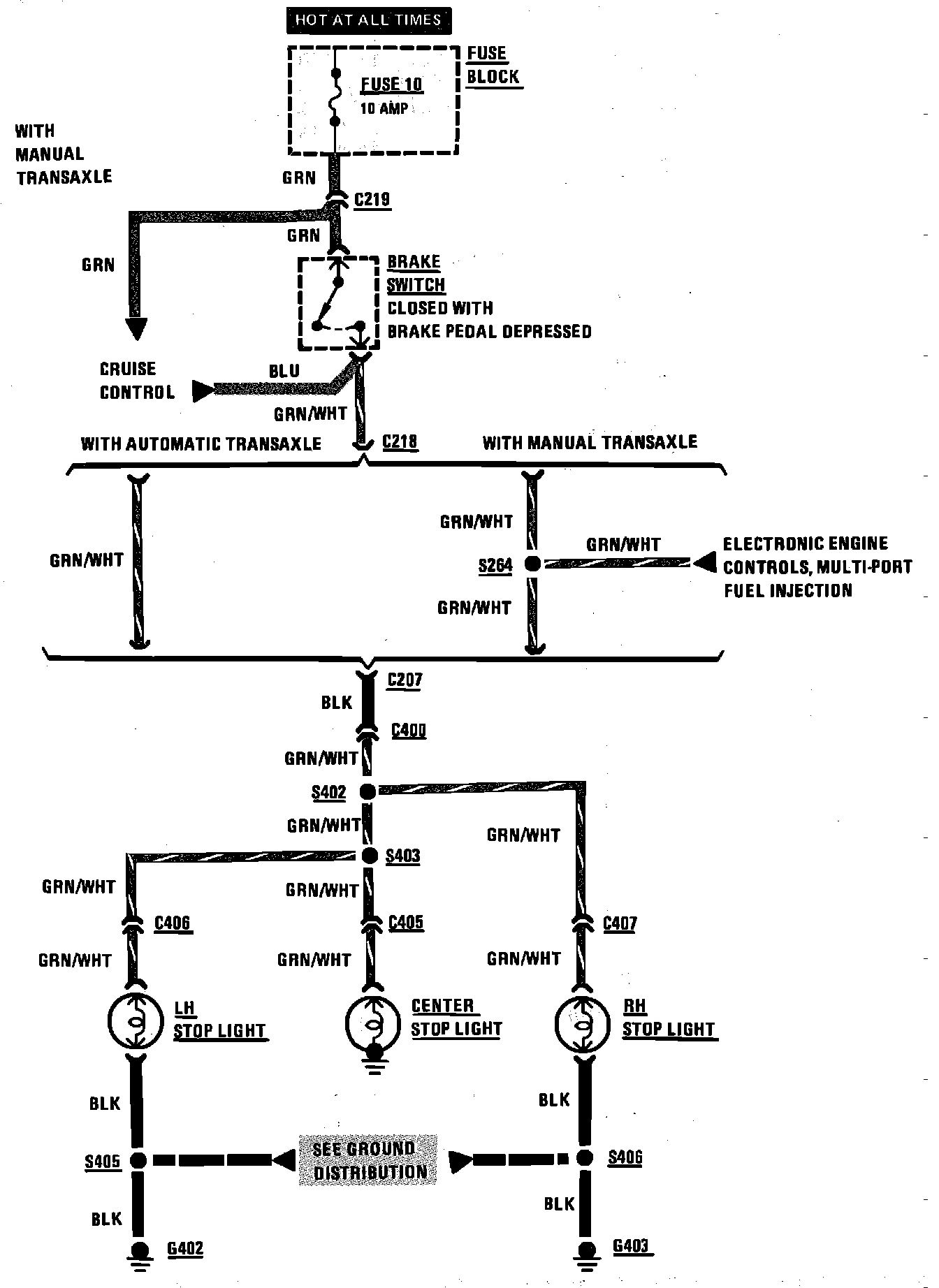

Fig. 43a Stop Lamps Wiring Circuit (W/Cruise):
