Instrument Panel Cluster Replacement

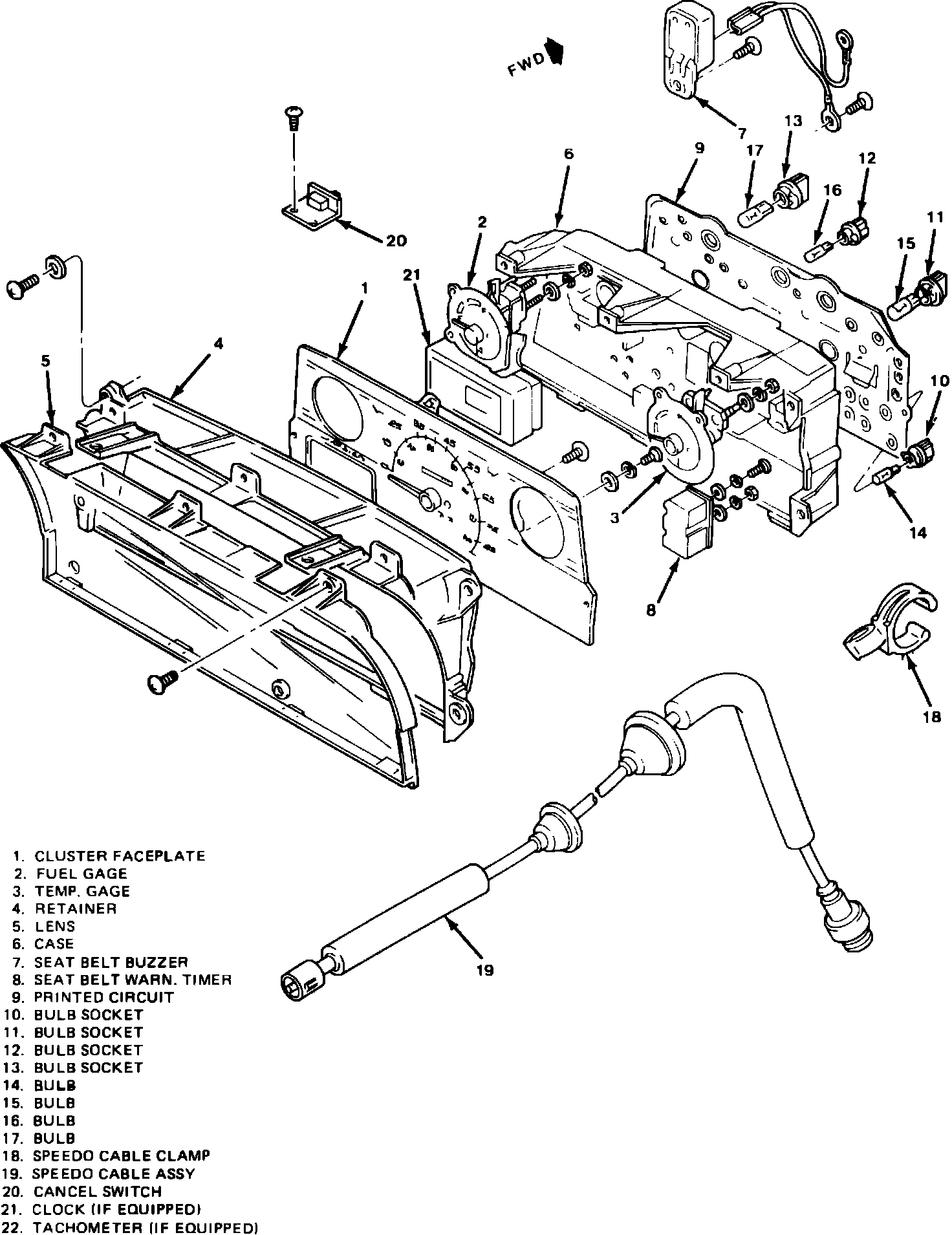

Fig. 5 Instrument cluster assembly - Less tachometer:

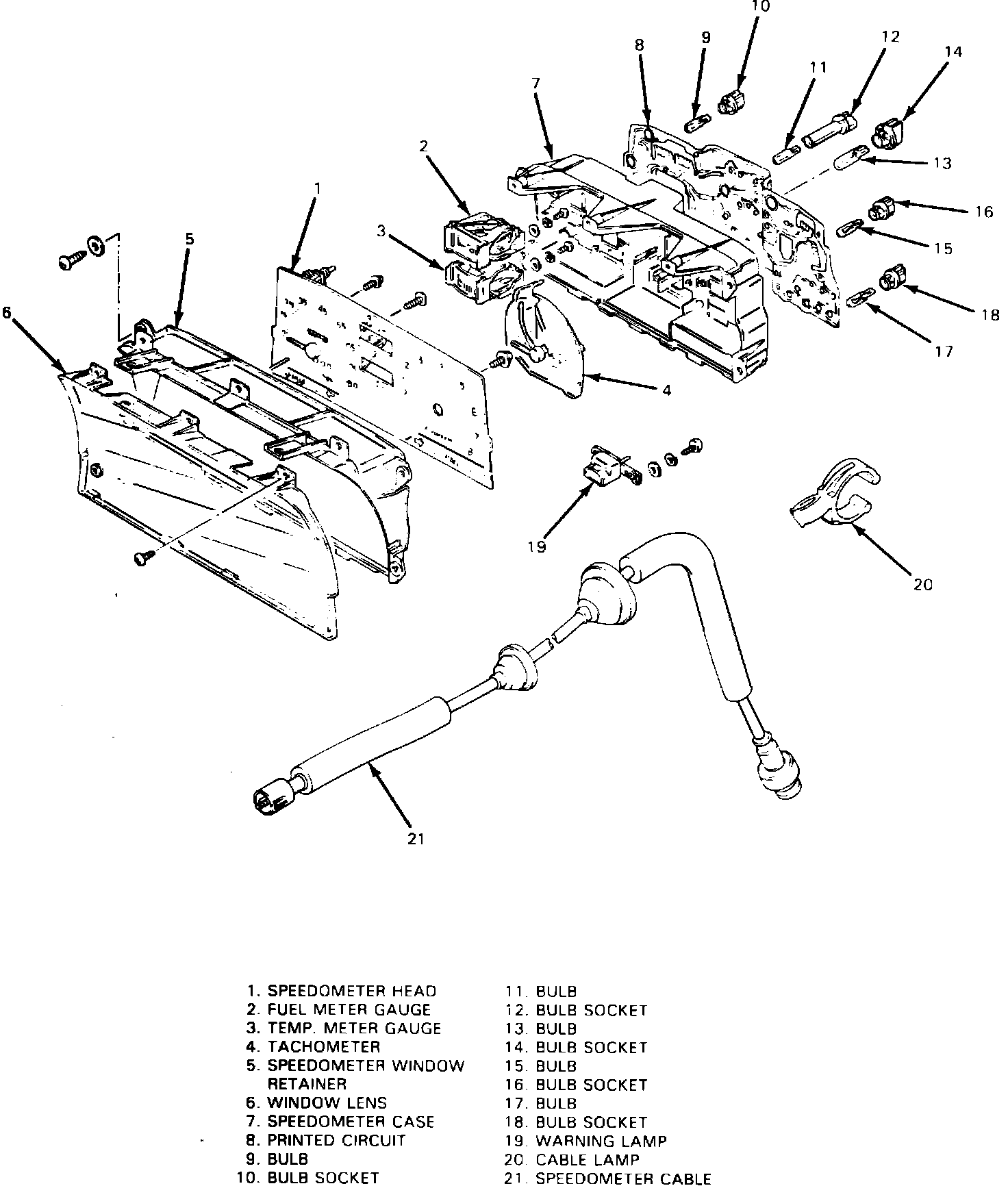

Fig. 6 Instrument cluster assembly - With tachometer:

1. Disconnect battery ground cable.
2. Remove steering column trim panel.
3. Lower steering column.
4. Remove instrument panel cluster bezel screws and bezel, Figs. 5 and 6.
5. Remove 2 switches from bezel.
6. Remove cluster screws and cluster.
7. Remove lens.
8. Reverse procedure to install.
