Home
>>
Chevrolet
>>
1988
>>
Sprint L3-61 1.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Rear
Rear

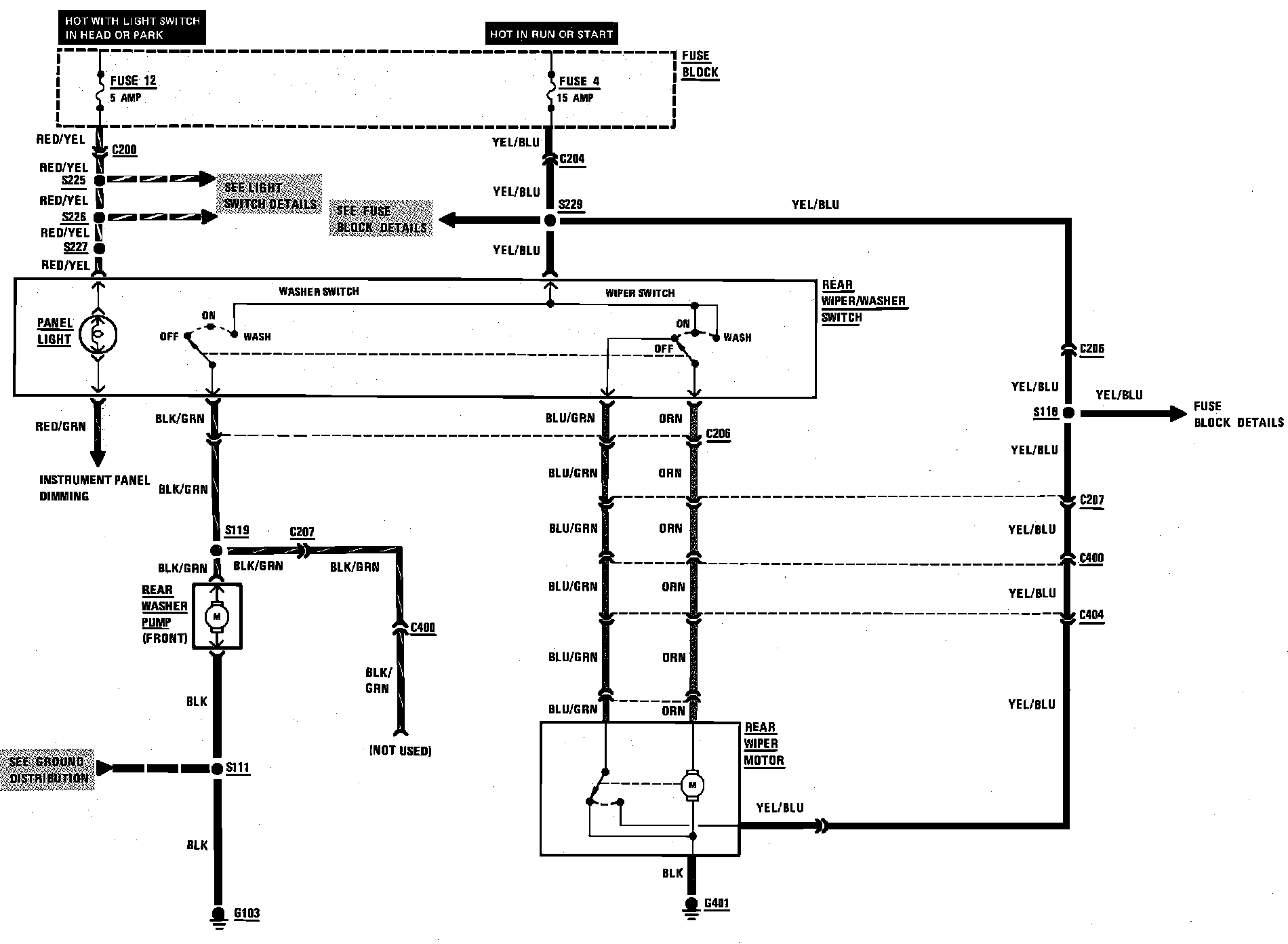

Fig. 42 Rear Washer/Wiper Wiring Circuit:
