A/C Wiring Diagram W/Expansion Valve
A/C Wiring Diagram W/Expansion Valve

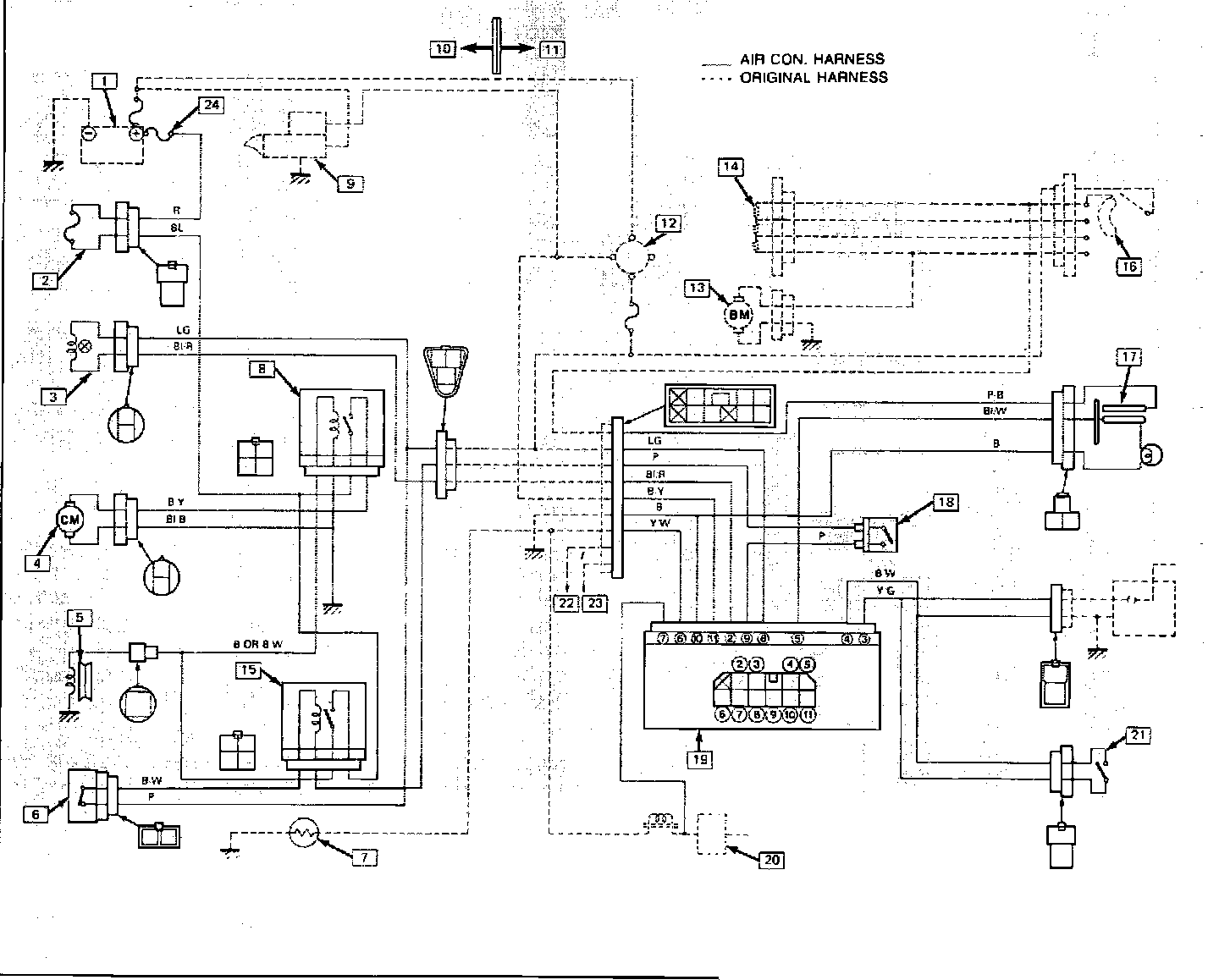

A/C Wiring Diagram (Manual Transmission) & V5 Compressor:
