Home >> Chevrolet >> 1988 >> Sprint L3-61 1.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> Headlamp Switch >> Part 1 of 2

Part 1 of 2

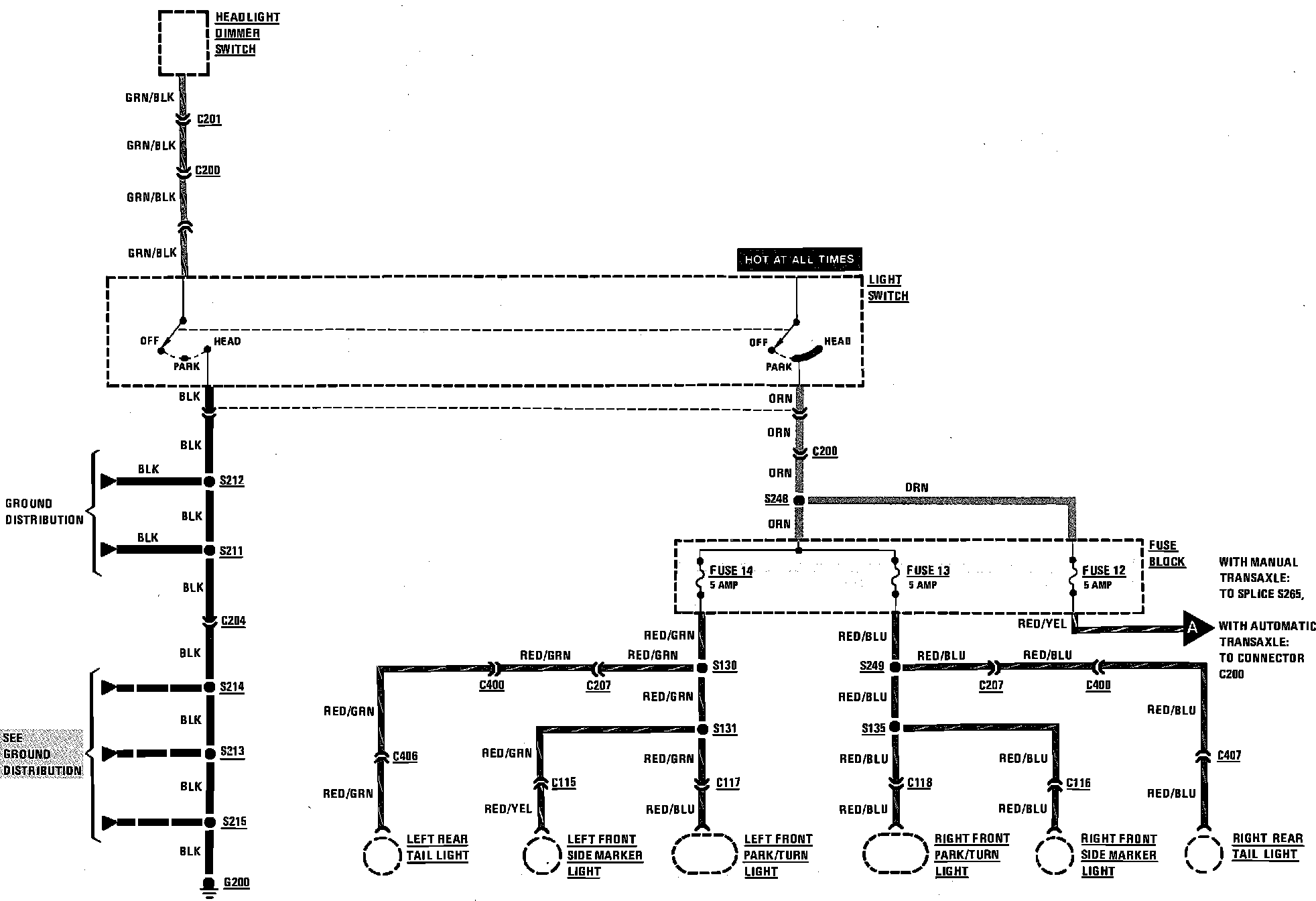

Fig. 34a Lamp Switch Wiring Circuit. (Part 1 of 2):
