Parking Brake Pedal: Adjustments

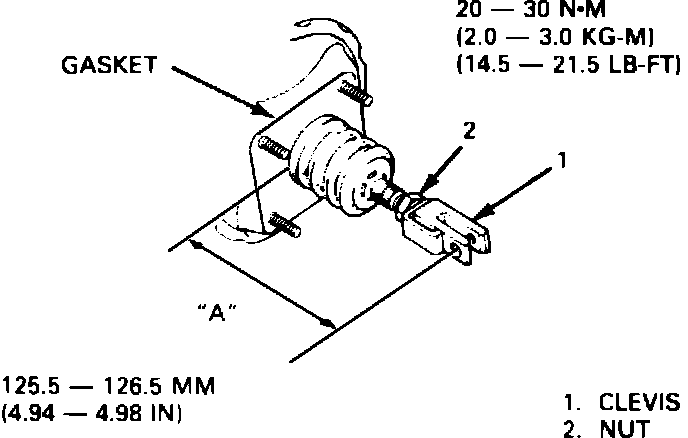

Fig. 9 Checking master cylinder push rod length:

1. Brake pedal should normally be at same height as clutch pedal. Check that distance between brake booster mounting surface (with gasket) and pushrod clevis pin hole is 4.94-4.98 inches, Fig. 9.
