Reservoir Replacement

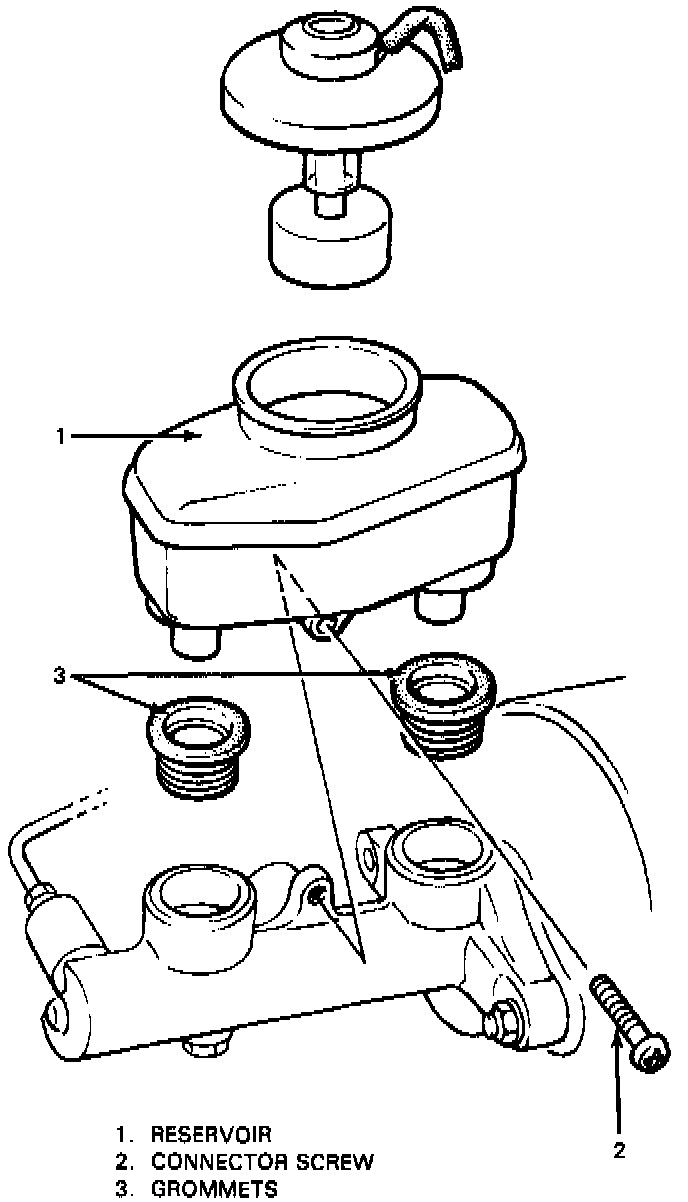

Removing Master Cylinder Reservoir:

REMOVAL:
1. Clean outside of reservoir.
2. Take out fluid with a syringe.
3. Remove reservoir connector screw.
4. Remove reservoir.

Installing Master Cylinder Reservoir:

INSTALLATION
1. When using new grommets, lubricate them with brake fluid. Then press-fit grommets to master cylinder. Grommets must be seated in place.
2. Install reservoir and tighten screw to 1-2.5 Nm (0.75-1.8 ft. lb.).
3. Fill reservoir with specified fluid.
4. Upon completion of installation, check for fluid leakage.
