Chevrolet
>>
1988
>>
Spectrum-Import L4-91.5 1509cc 1.5L Turbo VIN 9 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Speaker System
Speaker System

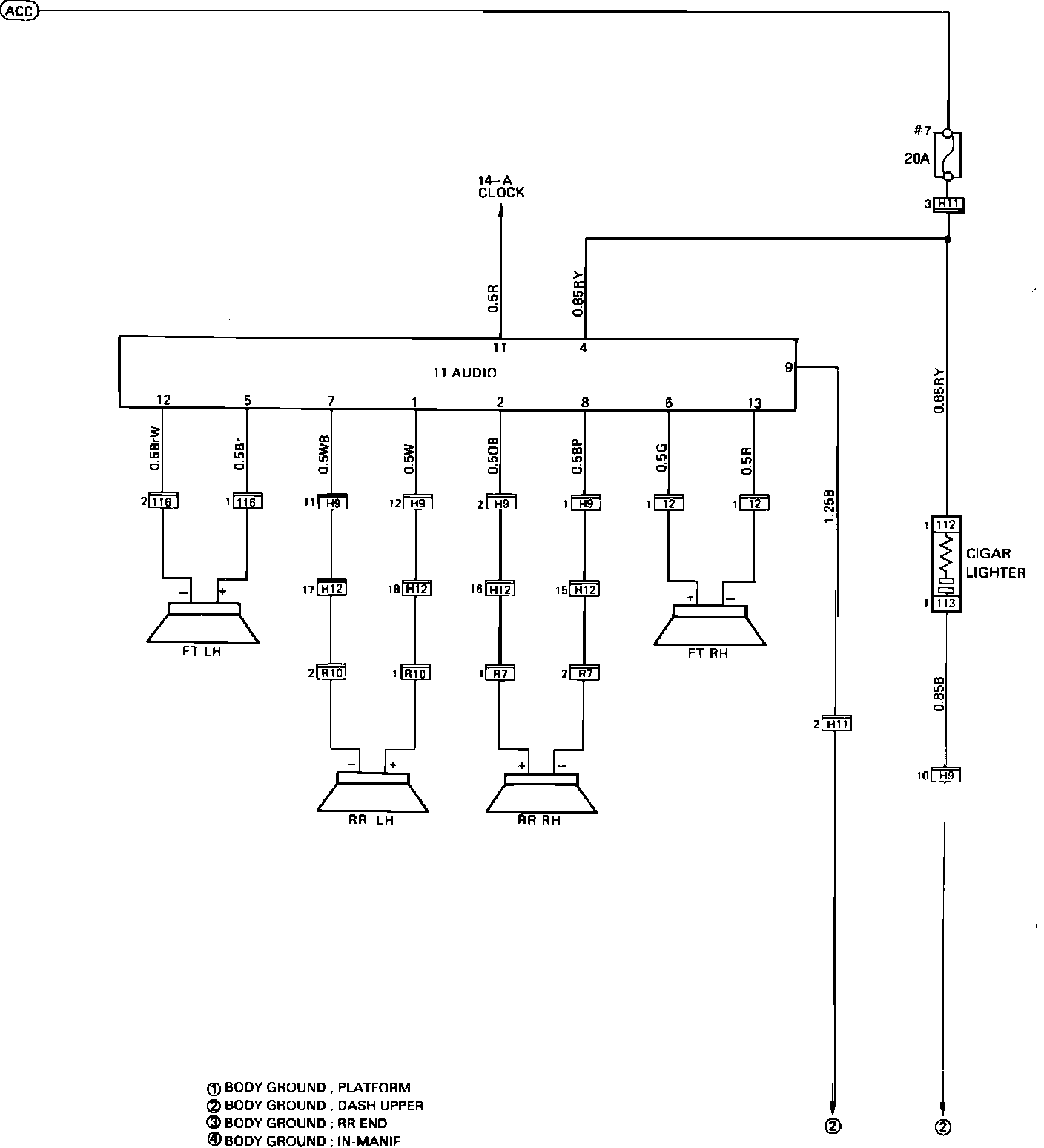

Fig. 7 Audio System. Less Turbo:
