Home
>>
Chevrolet
>>
1988
>>
Spectrum-Import L4-91.5 1509cc 1.5L Turbo VIN 9 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Heater/AC & Rear Defogger Circuits
Heater/AC & Rear Defogger Circuits

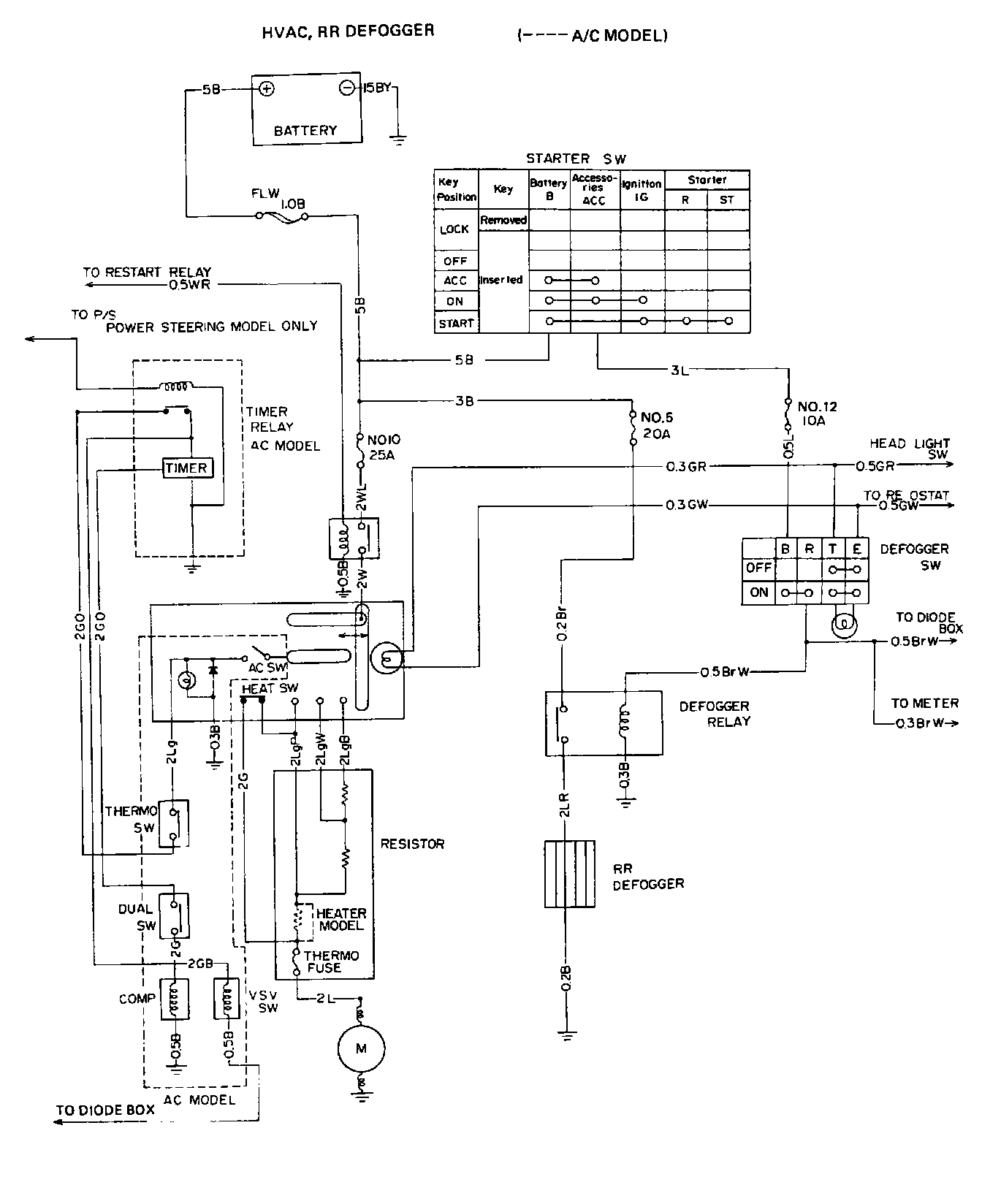

Heater/AC. Rear Defogger Circuits:
