Chevrolet
>>
1988
>>
Spectrum-Import L4-91.5 1509cc 1.5L Turbo VIN 9 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Fog/Driving Lamp
>>
Non-Turbocharged
Non-Turbocharged

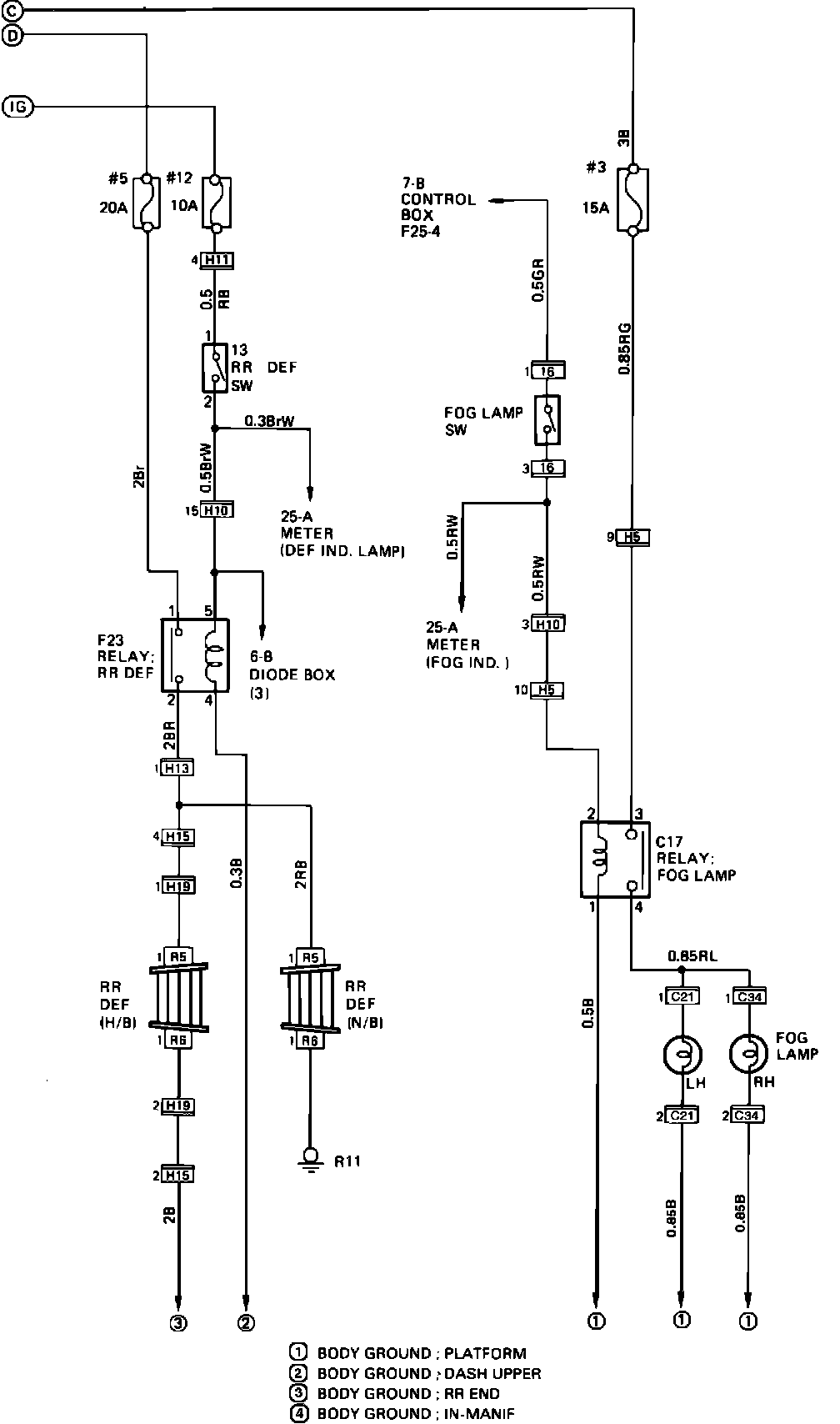

Rear Defogger & Fog Lamp. Less Turbo:
