Spectrum-Import L4-91.5 1509cc 1.5L Turbo VIN 9 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Dome Lamp
Dome Lamp

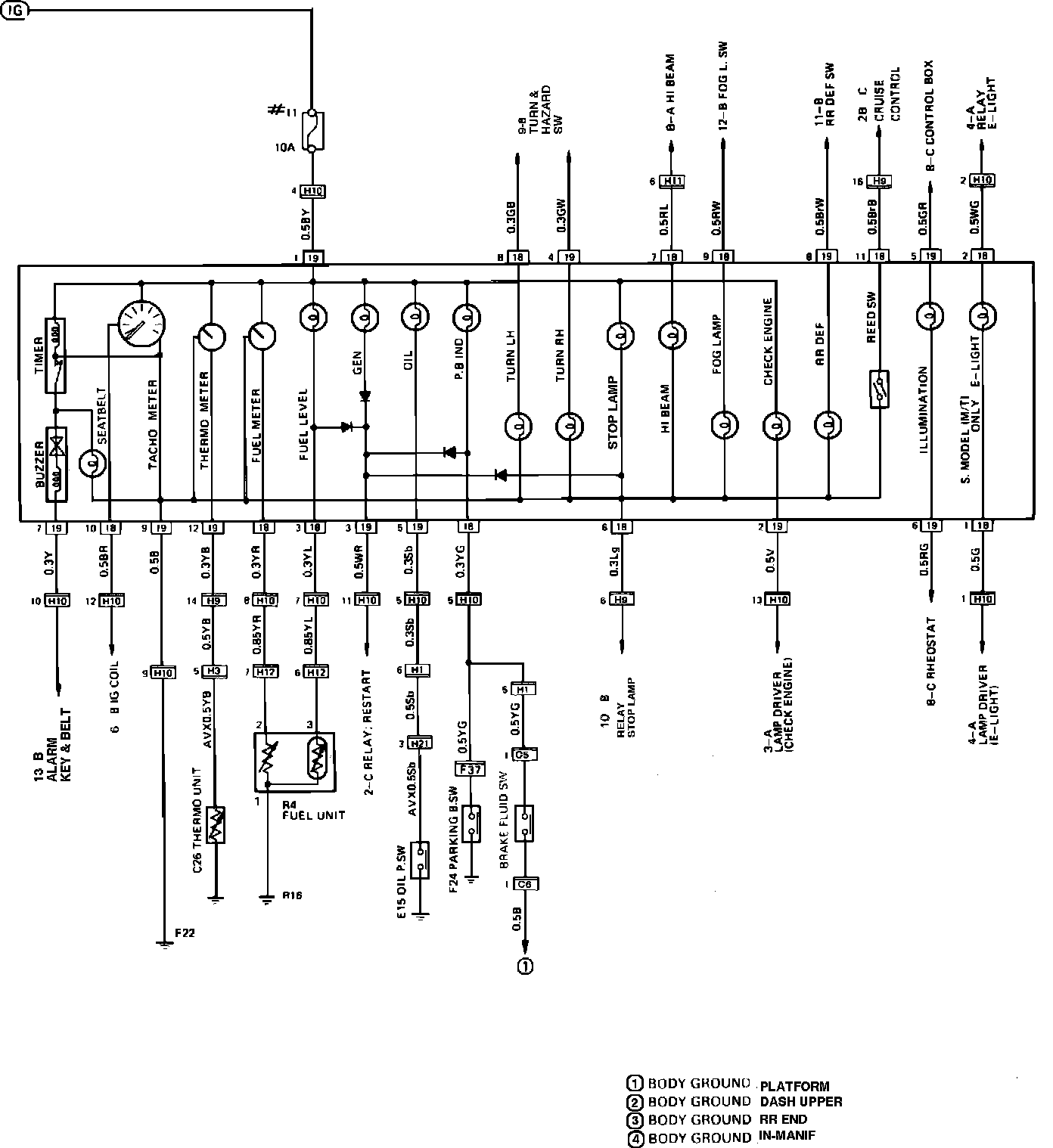

Instrument Panel. Less Turbo:
