Home
>>
Chevrolet
>>
1988
>>
Nova/Chevy II L4-1600cc DOHC
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Intake Manifold
>>
Diagrams
>>
Federal Emissions
Federal Emissions

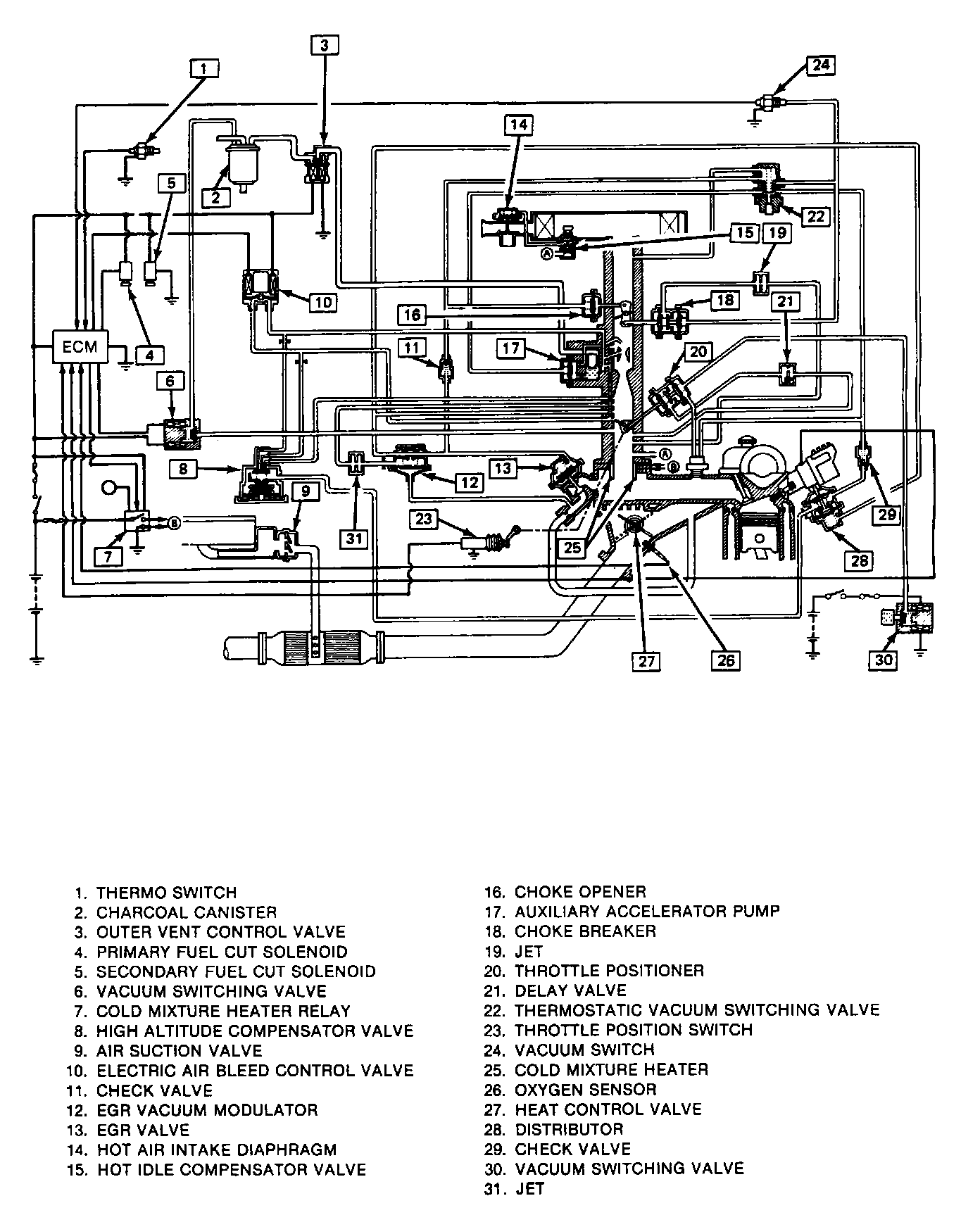

Vacuum & Wiring Diagram (Federal Emissions):
