Home
>>
Chevrolet
>>
1988
>>
Nova/Chevy II L4-1600cc DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

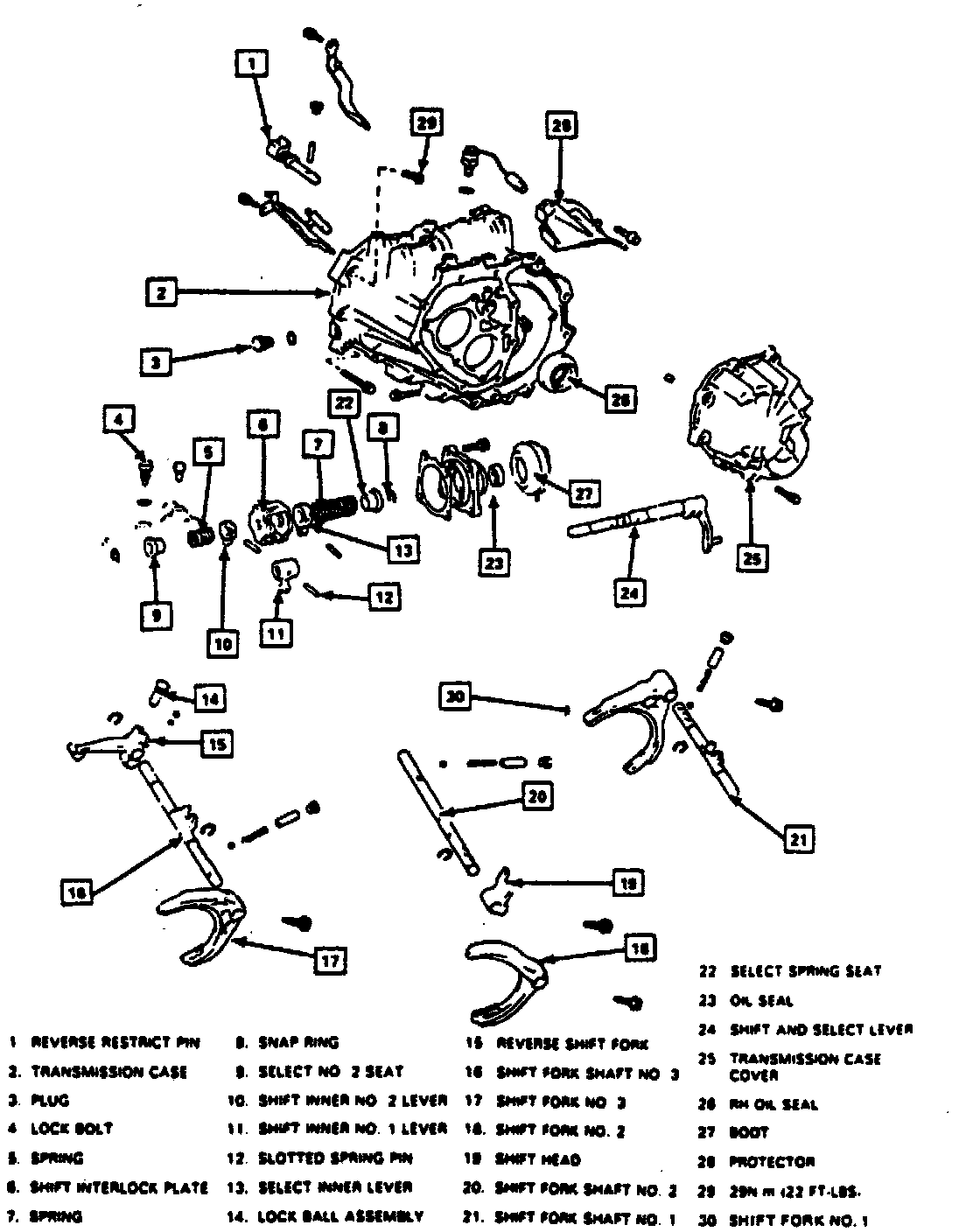

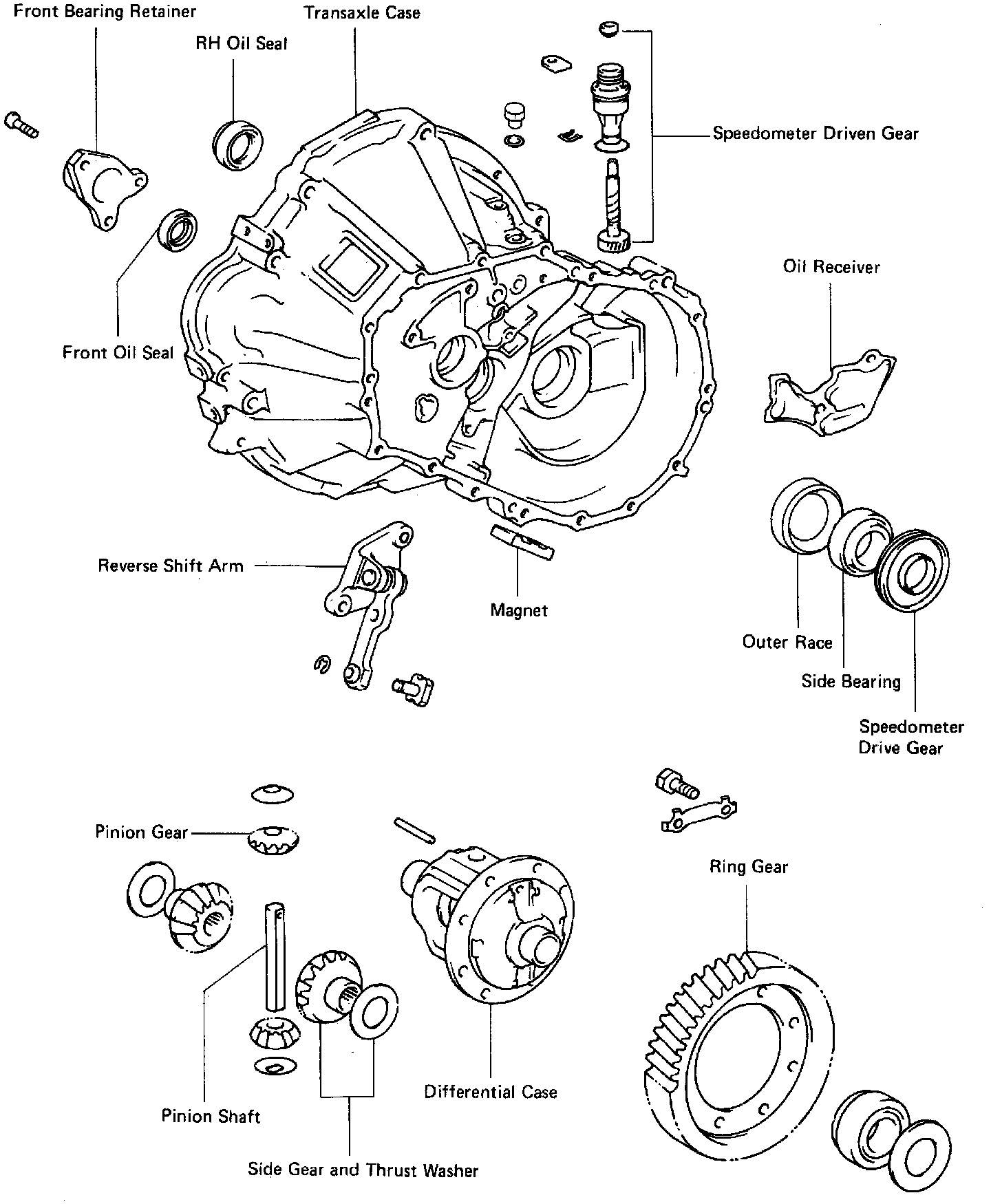

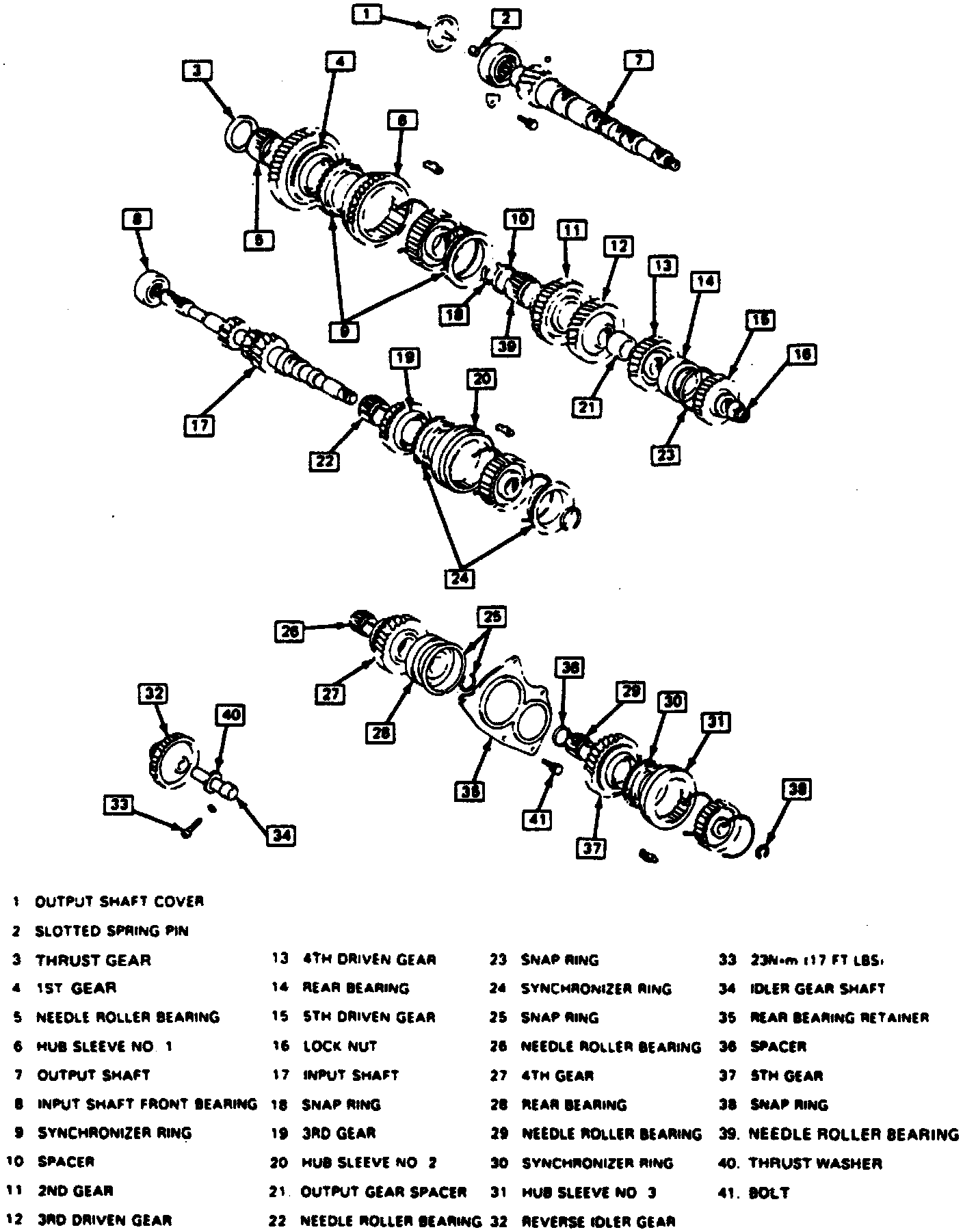

Manual Transmission/Transaxle
Manual Transmission/Transaxle
Description:
Description:
Description:
