Chart J: Vacuum Circuit Inspection. (4A-GE Engine)
Chart J: Vacuum Circuit Inspection. (4A-GE Engine)

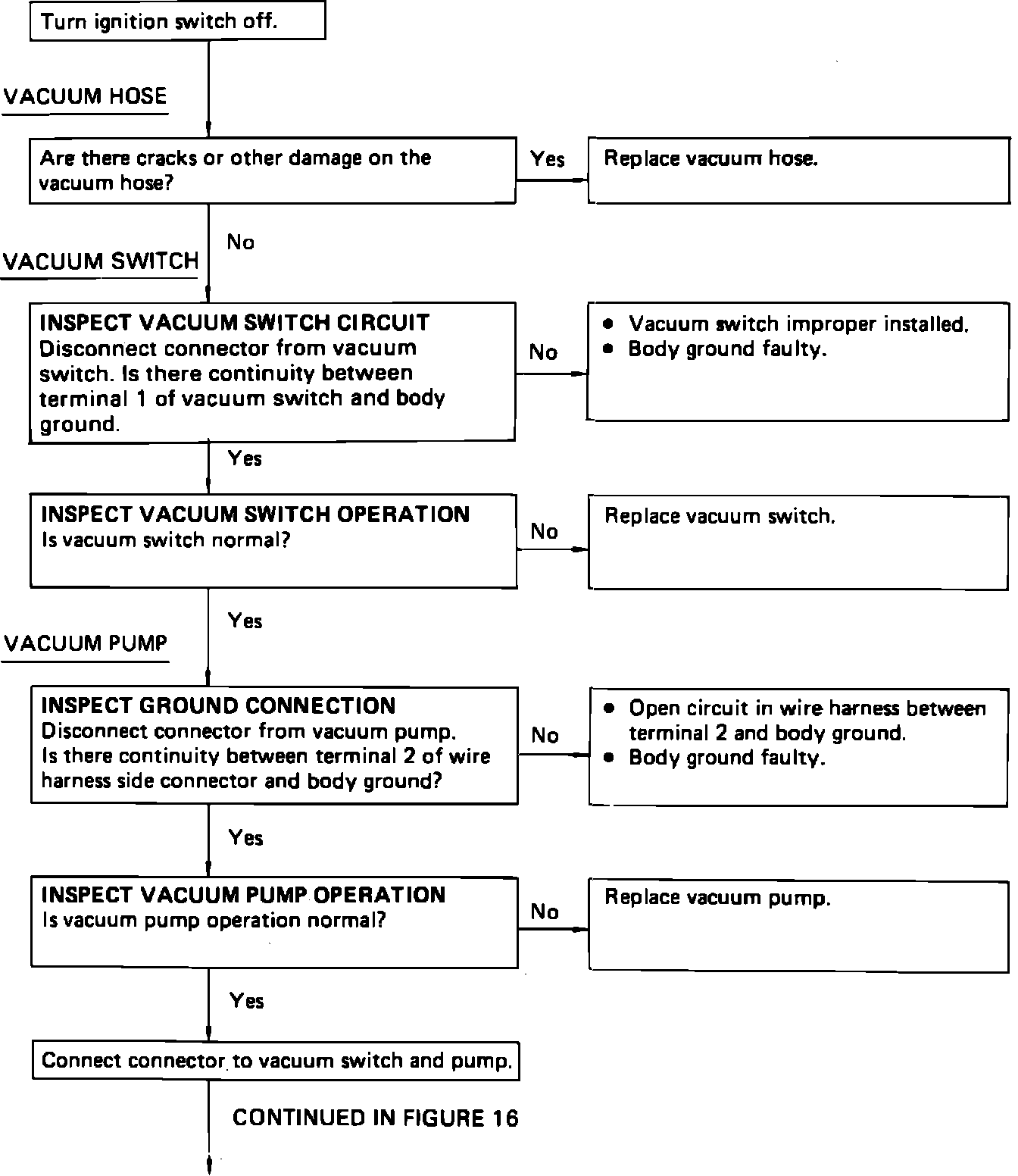

Figure 15 - "J" Vacuum Circuit Inspection (4A-GE Engine):

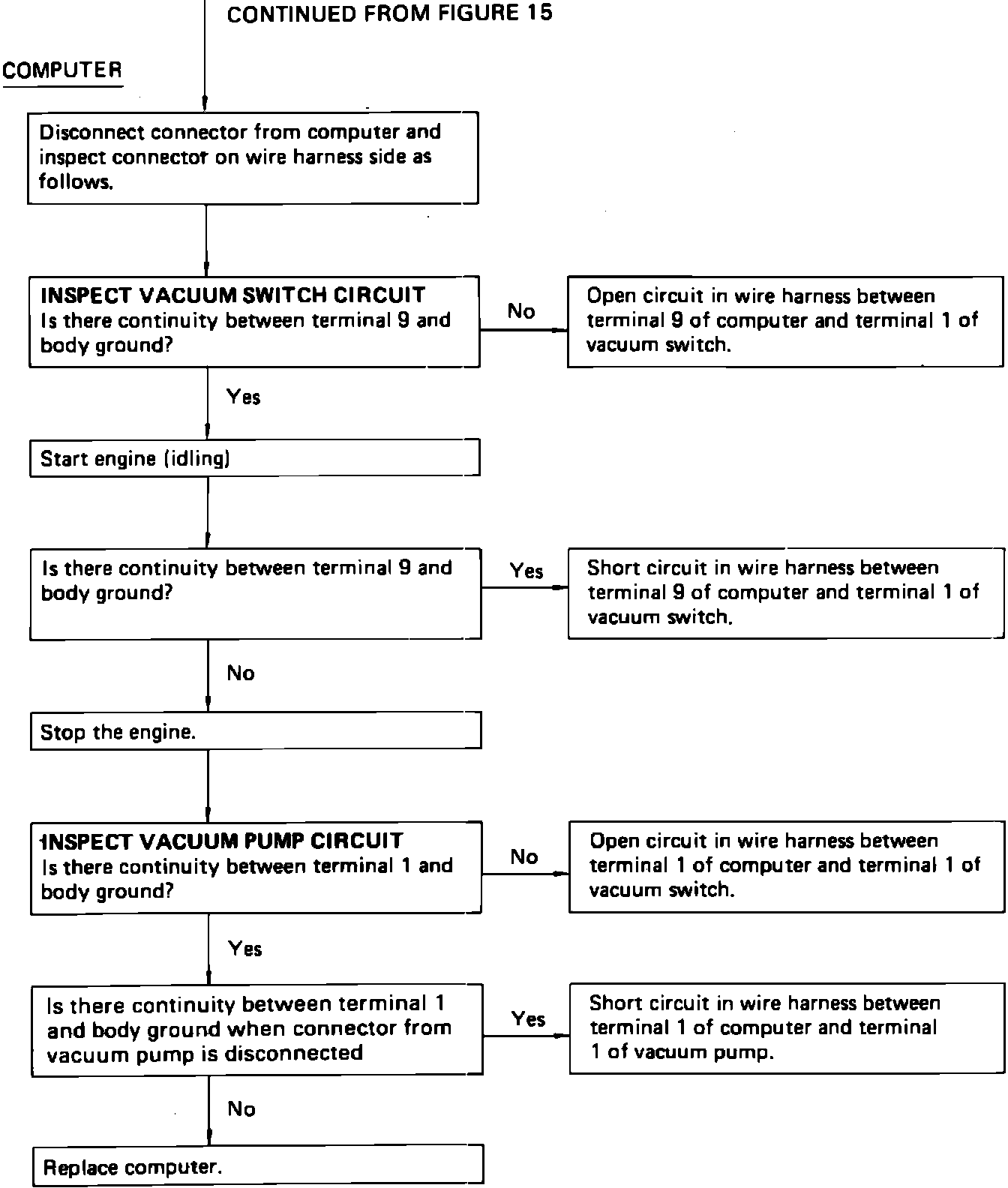

Figure 16 - "J" Vacuum Circuit Inspection - Continued:
