Home
>>
Chevrolet
>>
1988
>>
Monte Carlo V8-305 5.0L VIN H 4-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution
>>

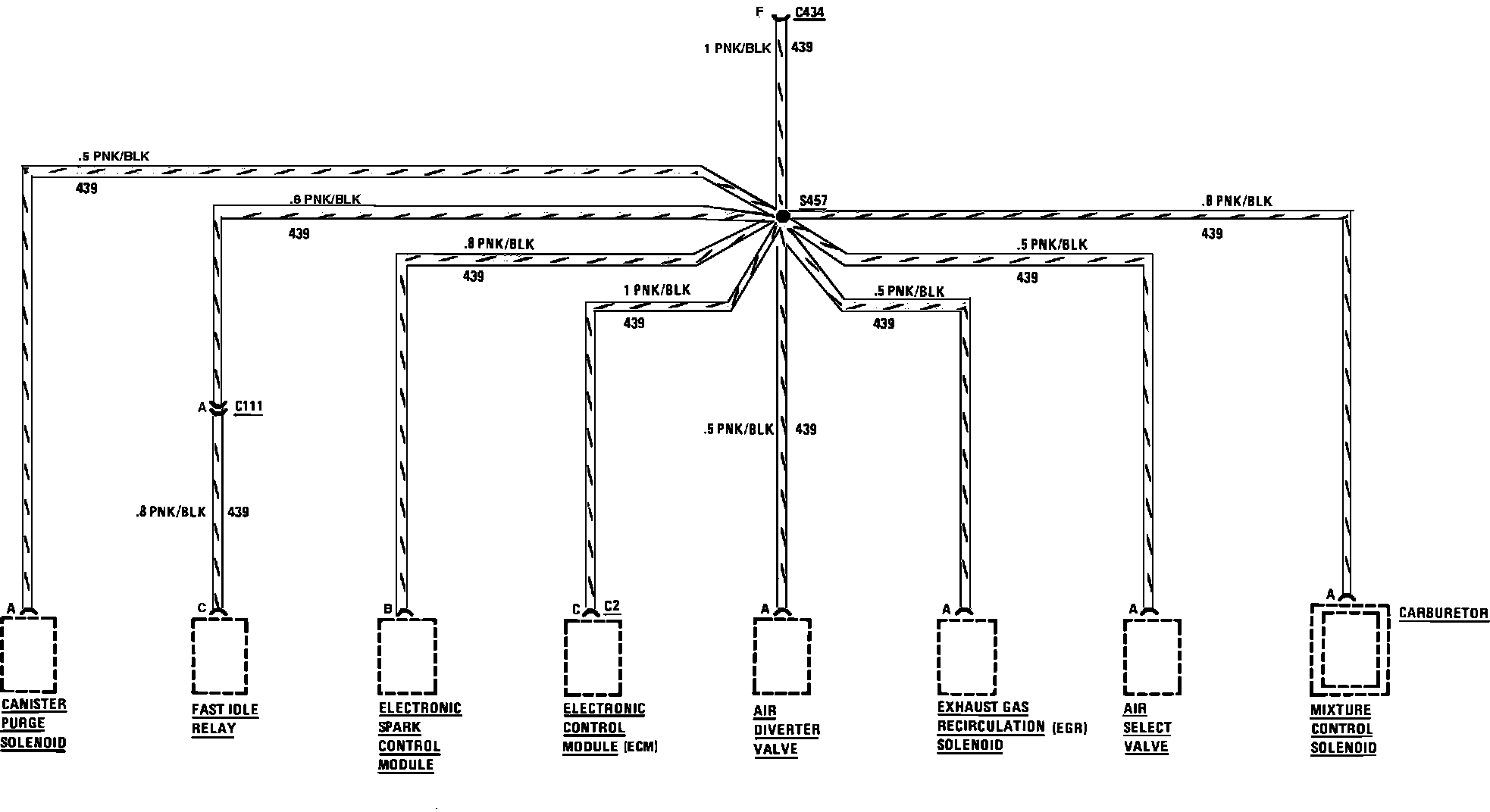

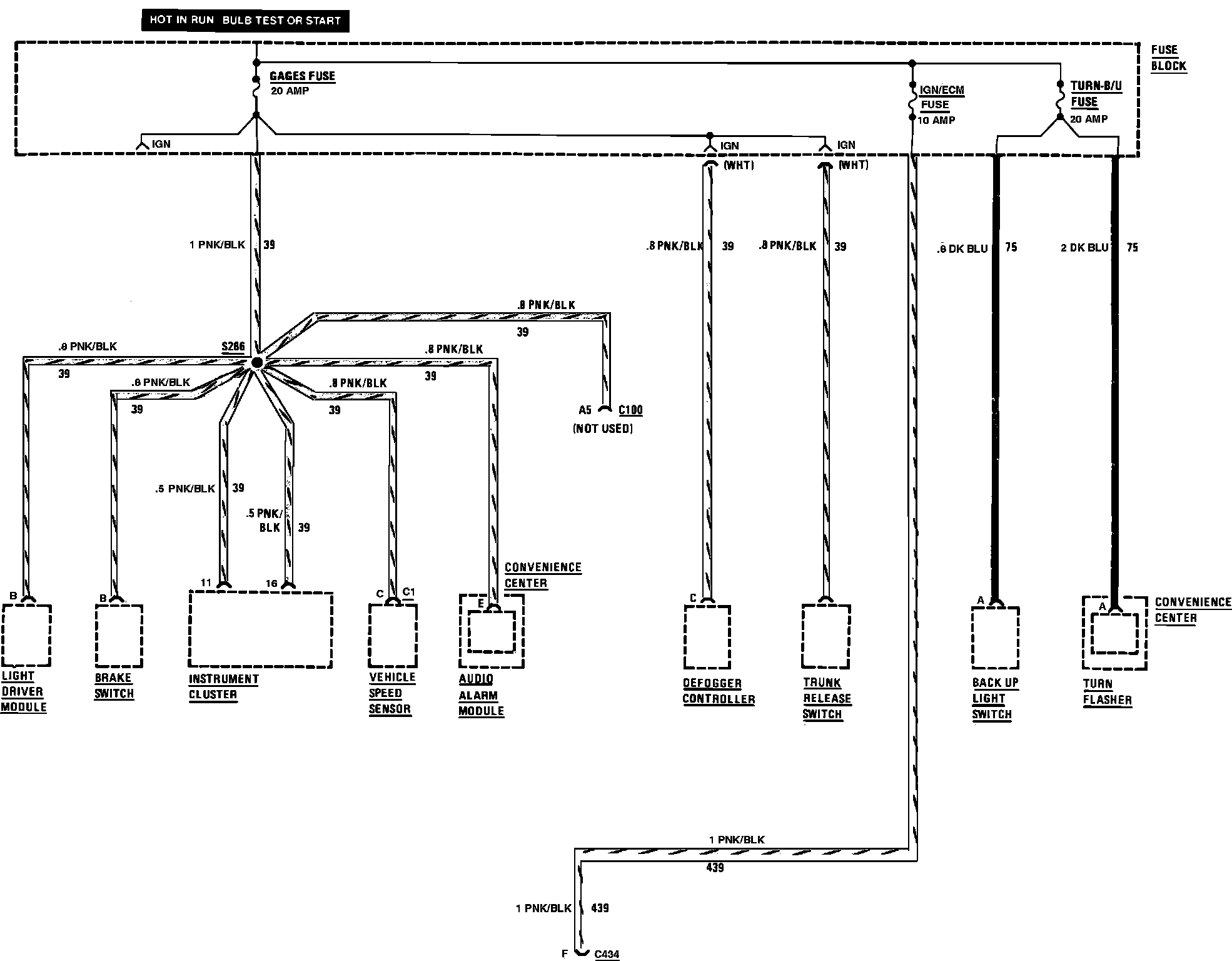

Gages Fuse, Ignition-ECM Fuse & Turn-Back-Up Fuse
Gages Fuse, Ignition-ECM Fuse & Turn-Back-Up Fuse
Gages Fuse, Ignition-ECM Fuse & Turn-Back-Up Fuse:
Gages Fuse, Ignition-ECM Fuse & Turn-Back-Up Fuse:
