Monte Carlo V8-305 5.0L VIN H 4-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

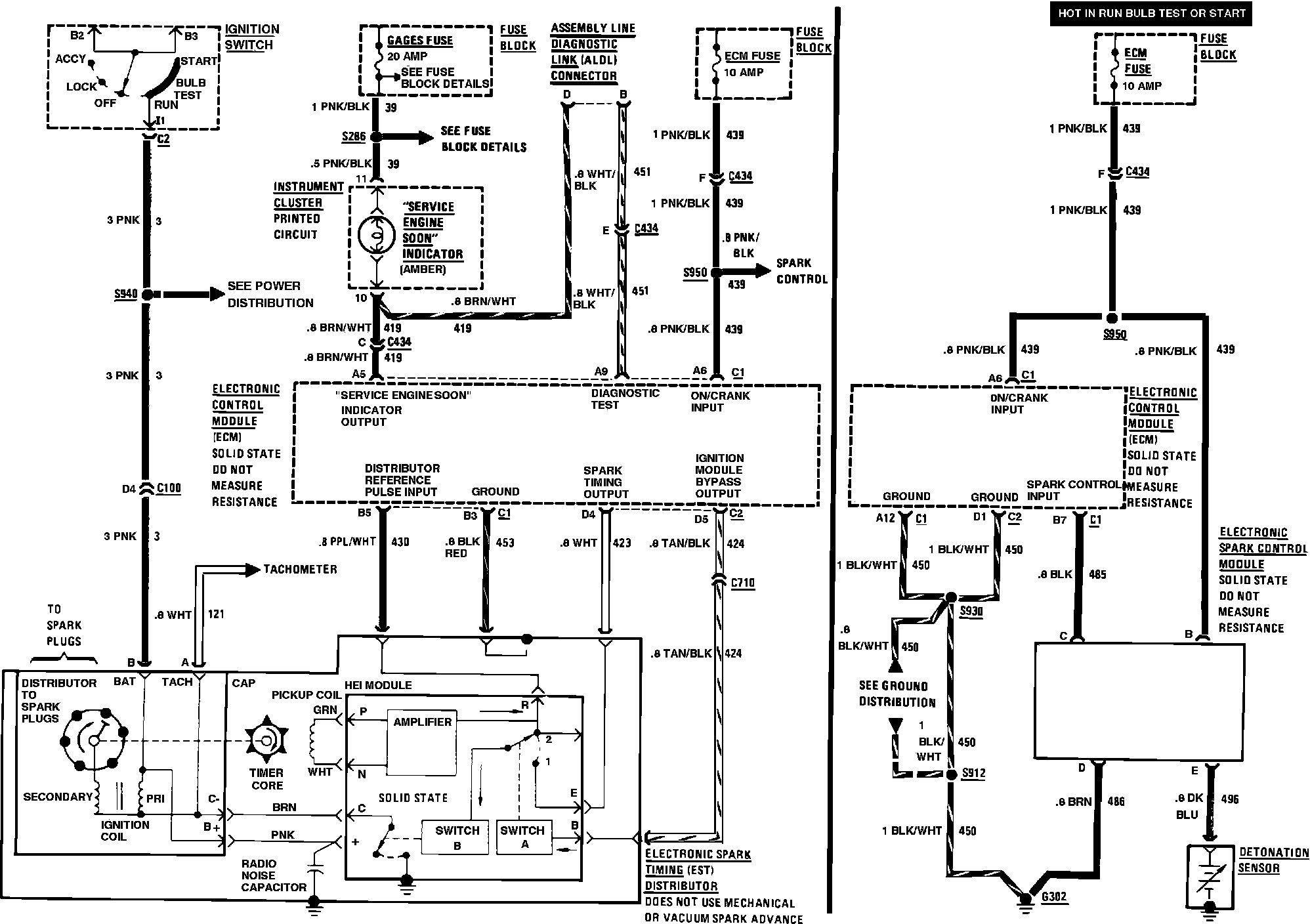

Ignition & Service Engine Soon Indicator:
